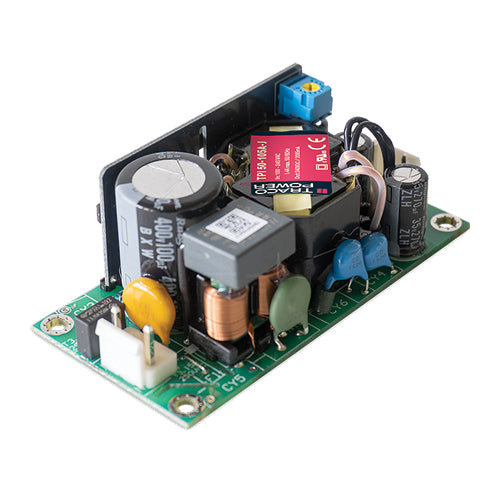

The Traco Power TPI 50-105A-J is a 40W AC/DC power supply designed for industrial applications. This open frame unit features a universal input voltage range of 85~264Vac and provides a stable 5Vdc output with a maximum current of 8 Amps.
With an efficiency of 91%, the TPI 50-105A-J operates reliably within a wide temperature range of -40°C to 85°C. Its compact dimensions of 76.2mm x 38.1mm x 33.0mm make it suitable for chassis mounting in space-constrained environments.
Key features include adjustable output, DC input capability, and universal input. The power supply is certified to industrial safety standards including IEC/EN 62368-1 and UL 62368-1, with an isolation voltage of 3 kV. It is designed for ITE (Commercial) applications and meets Overvoltage Category III requirements.
85-264Vac.
5Vdc at up to 8A.
-40°C to 85°C.
Open frame, chassis mount.
62368-1.
3kV.
