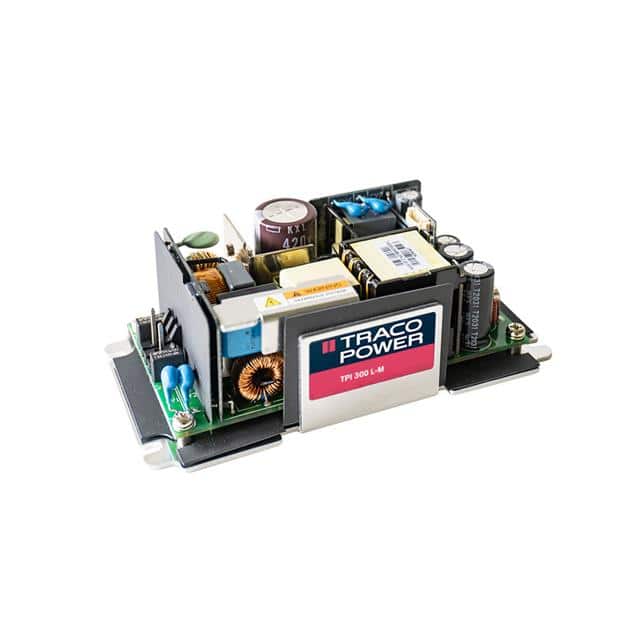

The Traco Power TPI 300-112L-M is an AC/DC converter designed for ITE (Commercial) applications. This open frame unit offers a power output of 180W, with a forced air rating of 300W. It provides 3kV of isolation and features a wide operating temperature range of -40°C to 85°C with derating.
Key features include adjustable output, DC input capability, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output. The converter has a chassis mount type and meets standard IEC 62368-1. Its dimensions are 116.8mm in length, 62.0mm in width, and 39.6mm in height.
This model boasts 91% efficiency and complies with RoHS3 standards. It is suitable for various industrial and commercial applications requiring a reliable power conversion solution.
The TPI 300-112L-M provides a single 12V output and is rated for 25A.
The TPI 300-112L-M is rated at 180W, with 300W possible under forced air cooling.
The TPI 300-112L-M operates from -40°C to 85°C with derating.
The TPI 300-112L-M carries CB, CE, cURus, EAC, and UKCA approvals and complies with standard 62368-1.
The TPI 300-112L-M has a typical efficiency rating of 91%.
