| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

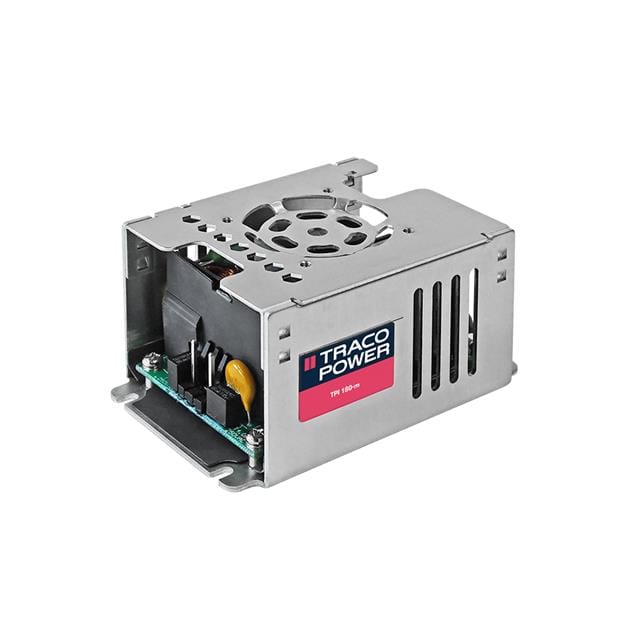

The Traco Power TPI 180-124-M is an enclosed type industrial AC/DC power supply designed for reliable operation. It features a wide AC input range of 85~264Vac and provides a stable 24Vdc output with a maximum current of 7.5A, delivering up to 180W of power. The unit is capable of a peak power of 220W for 5 seconds.
This power supply operates efficiently at 94% and maintains functionality across a broad temperature range of -40°C to +85°C, with derating. Its dimensions are 91.4mm x 62.0mm x 44.5mm, and it is designed for chassis mounting.
Safety certifications include IEC/EN 62368-1 and UL 62368-1, indicating compliance with industrial safety standards. The TPI 180-124-M also incorporates features such as adjustable output, PFC, and universal input, making it suitable for various industrial applications.
85 to 264Vac.
24Vdc.
7.5A.
180W.
Enclosed metal case with chassis mount.
-40°C to +85°C with derating.
3kV.
