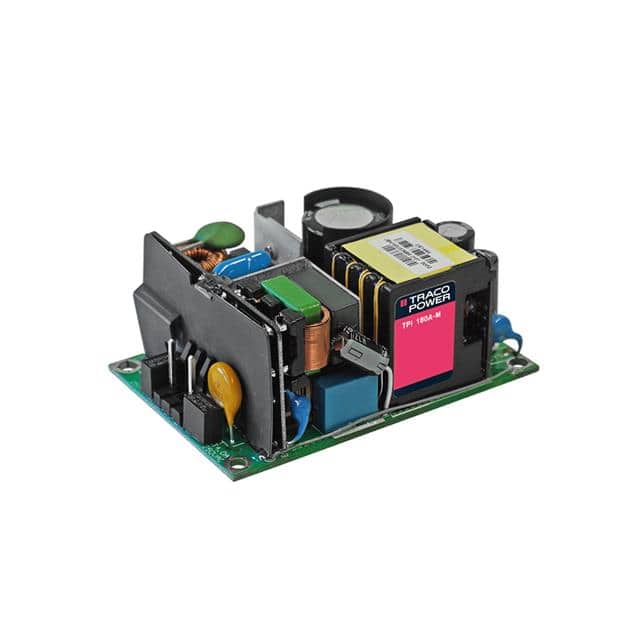

This Traco Power TPI 180-112A-M is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 150W, with a higher 180W rating under forced air conditions, and delivers 15A of current.
Key electrical specifications include 92% efficiency and universal input capability. The converter also features adjustable output, DC input capability, PFC, and a standby output. It is designed for chassis mounting and operates within a temperature range of -40°C to 85°C with derating.
The dimensions are 76.2mm x 50.8mm x 31.5mm. It meets safety standards including CB, CE, cURus, EAC, and UKCA, and complies with standard 62368-1.
-40°C to 85°C with derating.
150W (180W with forced air cooling).
15A.
92%.
3kV.
Chassis mount.
CB, CE, cURus, EAC, UKCA.
