| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

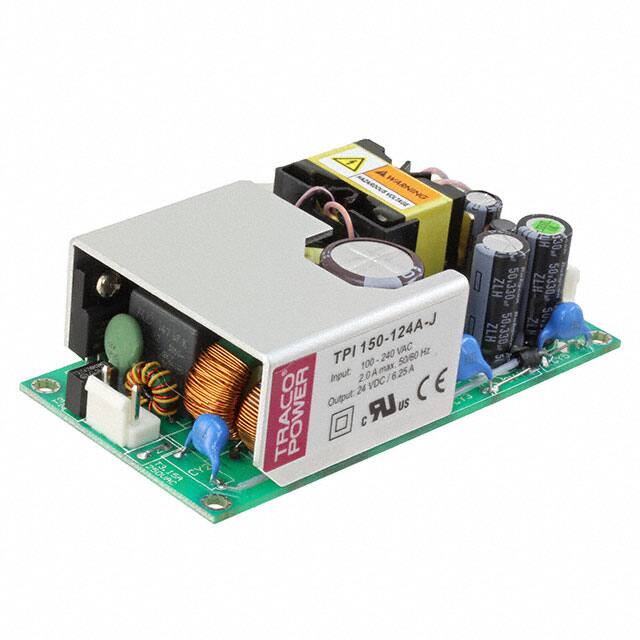

This Traco Power TPI 150-124A-J is an AC/DC converter designed for ITE (Commercial) applications. It features an open frame construction and chassis mounting for easy integration into systems.
The converter delivers 150W of power with an output current of 6.25A and an output voltage of 24V. Key electrical specifications include 92% efficiency and universal input capability. It also supports features such as adjustable output and Power Factor Correction (PFC).
With dimensions of 101.6mm x 50.8mm x 29.5mm, this unit operates within a temperature range of -40°C to 80°C with derating. It has undergone safety agency approvals including CB, CE, and cURus, and offers a high dielectric strength of 3kV.
The TPI 150-124A-J is RoHS3 compliant and has an MSL of 1.
The output voltage is 24V and the output current is 6.25A.
The power rating is 150W.
The operating temperature range is -40°C to 80°C with derating.
It uses chassis mount.
The efficiency is 92%.
The dimensions are 101.6mm (length) x 50.8mm (width) x 29.5mm (height).
It is approved by CB, CE, and cURus.
