| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

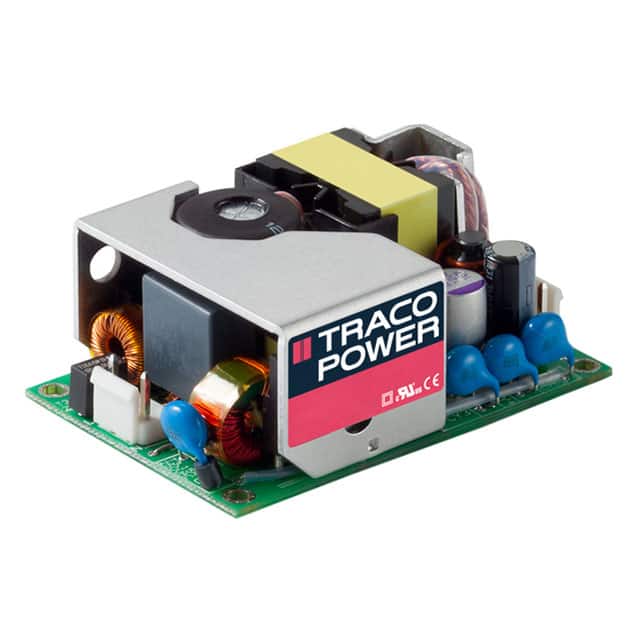

The Traco Power TPI 100A Series TPI 100-136A-J is a 100 Watt AC/DC open frame power supply designed for industrial and domestic applications. It features a high power density in a compact 2" x 3" package.
Key electrical specifications include a 36VDC output voltage, 2.78A output current, and 91% efficiency. The unit supports a wide input voltage range of 85-264 VAC and 120-370 VDC, with active power factor correction. It provides 3000 VAC I/O reinforced isolation and operates efficiently with low no-load power consumption, ready to meet ErP directive requirements.
Designed for demanding applications, this power supply operates within a temperature range of -40°C to +50°C at full load, and up to 80°C with derating. The TPI 100-136A-J is chassis mountable and suitable for ITE (Commercial) applications. It meets IEC 62368-1 and UL 62368-1 standards.
The output voltage is 36 VDC.
The output power is 100 W.
The efficiency is typically 91%.
The operating temperature range is -40°C to 80°C with derating.
It is an open frame power supply designed for chassis mounting.
