| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

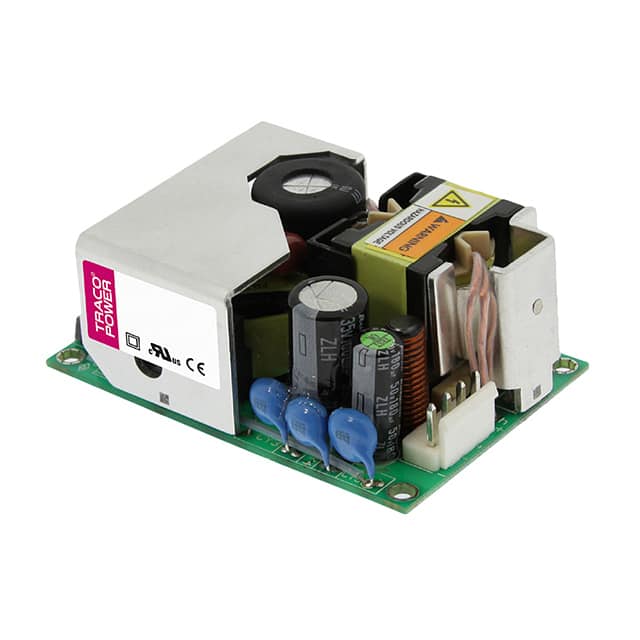

The Traco Power TPI 100A Series, specifically the TPI 100-112A-J model, is a 100 Watt AC/DC open frame power supply designed for high power density in a compact 2" x 3" package.
This converter features a 12VDC output voltage with an adjustable range of 10.8 to 13.2 VDC and a maximum output current of 8.34 A. It boasts a high efficiency of 91% and includes active power factor correction (PFC) with a power factor greater than 0.95. The I/O reinforced isolation is rated at 3000 VAC, ensuring safety and reliability.
Designed for demanding industrial and space-critical applications, the TPI 100-112A-J operates across a wide temperature range from -40°C to +50°C at full load, extending up to 80°C with load derating. It meets the ErP directive with a low no-load power consumption of less than 0.3 W and is prepared for Protection Class II.
The unit is suitable for ITE (Commercial) applications and is certified by CB, CE, and cURus. Its dimensions are 76.2mm x 50.8mm x 29.5mm, making it a versatile solution for various embedded systems.
The input voltage range is 85-264VAC (operational) or 100-240VAC (rated), and 120-370VDC.
The output voltage is 12VDC (adjustable ±10% to 10.8-13.2VDC) and the output current is 8.34A.
The package is open frame and the mounting type is chassis mount.
The operating temperature range is -40°C to +80°C with derating above +50°C.
The efficiency is typically 91-92% across a 10-100% load range.
The I/O reinforced isolation is 3000VAC.
The dimensions are 76.2mm (length) x 50.8mm (width) x 29.5mm (height).
