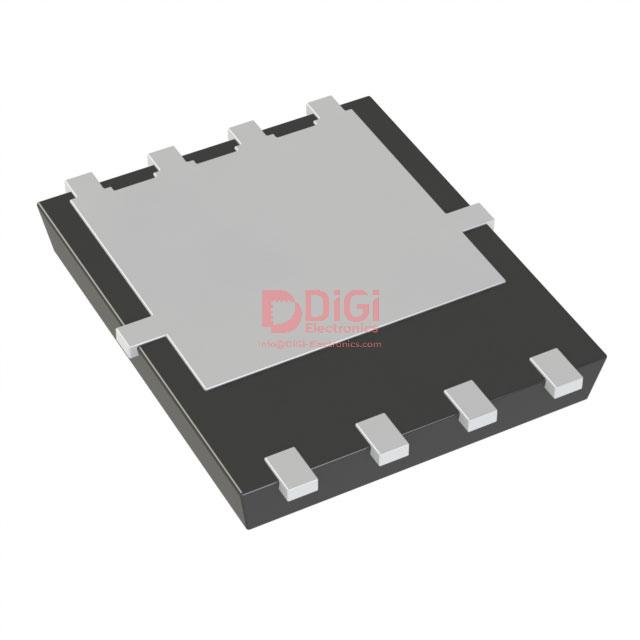

The TPH8R80ANH,L1Q from Toshiba is a high-performance N-Channel MOSFET. It is designed for surface mount applications and comes in an 8-SOP Advance package.
Key electrical specifications include a maximum drain-to-source voltage (Vdss) of 100V and a continuous drain current (Tc) of 32A. The on-resistance (Rds On) is rated at a maximum of 8.8mOhm at 16A and 10V gate-source voltage. Input capacitance (Ciss) is 2800 pF at 50V, and gate charge (Qg) is a maximum of 33 nC at 10V.
This MOSFET operates at temperatures up to 150°C (TJ) and has a maximum power dissipation of 61W (Tc). The gate-source voltage (Vgs) maximum is ±20V, with a gate threshold voltage (Vgs(th)) of 4V at 500µA. The technology used is MOSFET (Metal Oxide).
This component is suitable for various power switching applications where efficient and reliable performance is required. Its surface mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 100V.
The continuous drain current is 32A (Tc).
The maximum on-resistance (Rds On) is 8.8mOhm at 16A and 10V.
The operating temperature range is up to 150°C (TJ).
It is supplied in an 8-PowerVDFN package, also referred to as 8-SOP Advance (5x5).
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
