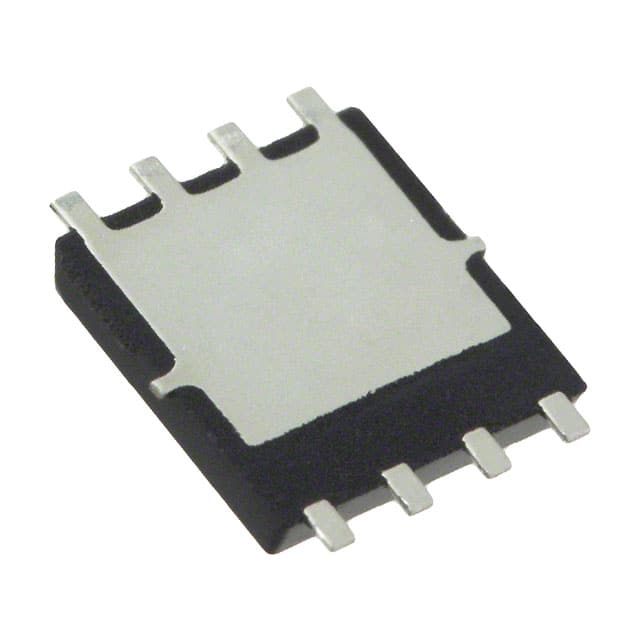

The Toshiba TPH7R506NH,L1Q is an N-Channel MOSFET designed for power management applications. It offers a drain-to-source voltage (Vdss) of 60V and a continuous drain current (Id) of 22A at 25°C.
Key electrical characteristics include a maximum on-resistance (Rds On) of 7.5mOhm at 11A and 10V gate drive voltage. The gate threshold voltage (Vgs(th)) is 4V maximum at 300µA, and the maximum gate-source voltage (Vgs) is ±20V. Input capacitance (Ciss) is rated at 2320 pF maximum at 30V.
This MOSFET operates within a junction temperature range of 150°C. It is available in a surface mount package, specifically the 8-SOP Advance (5x5) or 8-PowerVDFN. The technology used is Metal Oxide Semiconductor Field-Effect Transistor (MOSFET).
Environmental compliance includes RoHS compliance and Moisture Sensitivity Level 1. The part is suitable for various electronic designs requiring efficient power switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is 60 V.
The continuous drain current is 22 A at 25°C ambient temperature.
The maximum on-resistance is 7.5 mOhm at 11 A drain current and 10 V gate-source voltage.
The maximum gate threshold voltage is 4 V at 300 µA drain current.
The maximum operating junction temperature is 150°C.
The device is available in an 8-PowerVDFN package with supplier device package 8-SOP Advance (5x5 mm). It is supplied in tape and reel or cut tape.
The maximum gate charge is 31 nC at 10 V gate-source voltage.
