| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operation | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight |

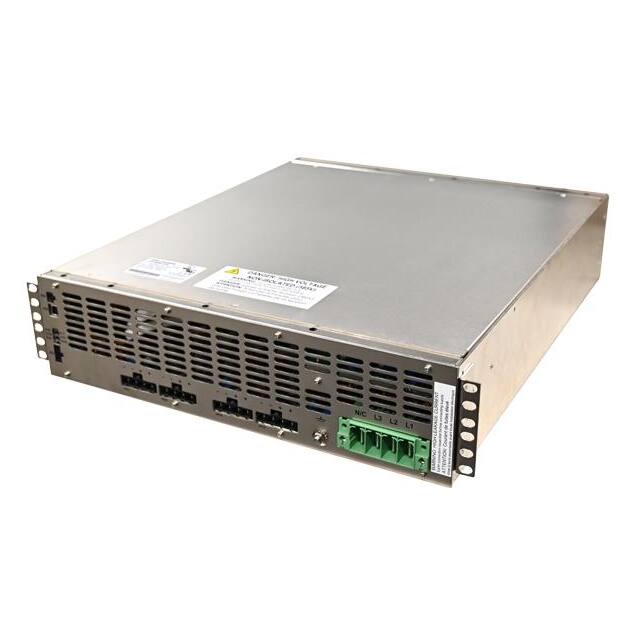

The TDK Corporation TPF45000-385 is a high-power AC DC converter designed for industrial applications. It provides a regulated 385Vdc output and accepts 3-phase input voltages ranging from 360 to 528 VAC.
With a maximum output power of 42000W and an impressive efficiency of 98%, this converter minimizes waste heat, making it suitable for demanding environments. The operating temperature range is -10°C to 50°C, ensuring reliable performance.
This enclosed unit is designed for chassis mounting. It features PMBus™ and USB interfaces for monitoring and control, along with remote on/off and standby output capabilities. The TPF45000-385 series is built to meet standards such as 62368-1 and includes various EMC protections.
The nominal output voltage is 385 VDC.
The operating temperature range is -10°C to 50°C, with start-up capability down to -20°C.
The input voltage range is 360 to 528 VAC (3-phase), with a nominal range of 400 to 480 VAC.
The output power rating is 42000W.
The typical efficiency is 98%.
The maximum output current is 110A.
Dimensions are 533.4mm x 449.6mm x 111.8mm, and weight is less than 30kg.
