TPD6F002DSVR The TPD6F002DSVR from Texas Instruments is a 6-channel EMI filter designed for data lines. It features a Pi-style RC network with 100 Ohm resistance and 17pF capacitance per channel.
Mfr Part #:

TPD6F002DSVR

Available from 6 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPD6F002DSVR from Texas Instruments is a 6-channel EMI filter designed for data lines. It features a Pi-style RC network with 100 Ohm resistance and 17pF capacitance per channel.
✓ Total Stock: 26,969 pcs
$ Price Range: $0.40

TPD6F002DSVR Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPD6F002DSVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Bandwidth
Capacitance
Center
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Package Quantity
Resistance
Technology
Type
Values
Voltage
Width
View Similar Products (0)

TPD6F002DSVR Description

Short technical summary and product information.

The TPD6F002DSVR is a highly integrated six-channel Electromagnetic Interference (EMI) filter and TVS-based ESD protection diode array from Texas Instruments. It is designed to suppress EMI/RFI emissions for data ports.



This device offers a Pi-style (C-R-C) filter configuration with a resistance of 100 Ohms and a total capacitance of 17pF per channel. It provides robust ESD protection, exceeding IEC 61000-4-2 standards with ±20kV contact discharge protection. The filter has a -3dB bandwidth of 100 MHz and an attenuation of 57dB at 100 MHz.



Operating within a temperature range of -40°C to 85°C, the TPD6F002DSVR is suitable for applications such as LCD displays, memory interfaces, GPIO lines, and FPD-Link. It features low leakage current of 20 nA (maximum).

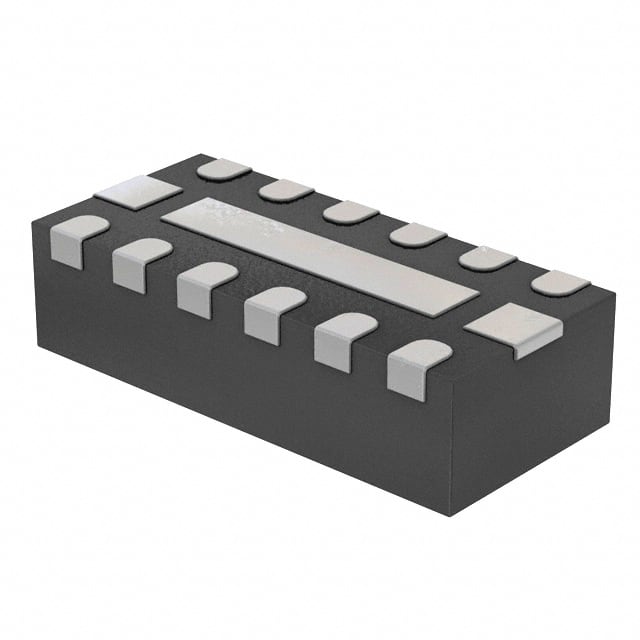

The component is housed in a space-saving WSON package with dimensions of 3 mm x 1.35 mm and is designed for surface mounting. It is supplied in a 3,000-unit tape and reel package.

TPD6F002DSVR Quick Information

Product Type: EMI Filter
Canonical Name: TPD6F002DSVR 6-Channel EMI Filter
Subcategory: RC Network

TPD6F002DSVR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPD6F002DSVR Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPD6F002DSVR Features

  • Six-channel EMI filtering and ESD protection.
  • 100 Ohm resistance and 17pF capacitance per channel.
  • Exceeds IEC 61000-4-2 ESD protection standards.
  • 100 MHz bandwidth and 57dB attenuation at 100 MHz.
  • Compact 3mm x 1.35mm WSON surface mount package.

TPD6F002DSVR Applications

  • Protects LCD display interfaces.
  • Filters memory interface data lines.
  • Used for GPIO line protection.
  • Suitable for FPD-Link applications.
  • Filters data lines on flex cables.

TPD6F002DSVR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the TPD6F002DSVR?

5.5V

What is the package type of the TPD6F002DSVR?

12-WFDFN Exposed Pad

What is the operating temperature range?

-40°C to 85°C

How many filter channels does the TPD6F002DSVR have?

6 channels

What is the bandwidth of the TPD6F002DSVR?

100MHz (-3dB)

What is the attenuation at 100MHz?

57dB

Does the TPD6F002DSVR have ESD protection?

Yes
