| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59,702 pcs
|
59702 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,096 pcs
|
1096 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
906 pcs
|
906 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |
The Texas Instruments TPD6E05U06RVZR is a 6-channel steering (rail-to-rail) TVS diode array designed for protecting high-speed data interfaces. It features a typical reverse standoff voltage of 5.5V and a clamping voltage of 14V at a peak pulse current of 2.5A (8/20µs waveform). The device offers 40W peak pulse power handling and is optimized for HDMI applications.

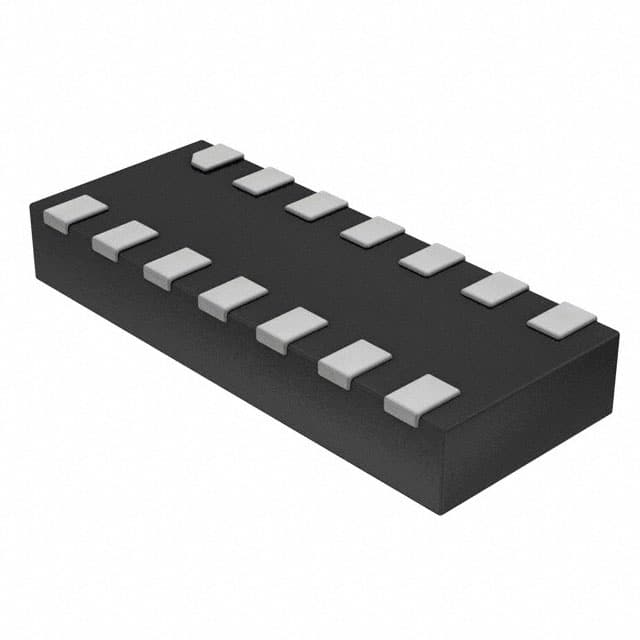

This surface-mount component is housed in a compact 14-UFDFN package with a supplier device package of 14-USON (3.5x1.35). It operates over a wide temperature range from -40°C to 125°C, making it suitable for industrial and automotive environments. The device includes power line protection and is designed for unidirectional channel configurations.
Engineers can use this TVS array to safeguard sensitive ICs from electrostatic discharge (ESD) and other transient voltage events on HDMI lines and other high-speed differential pairs. The low clamping voltage ensures minimal stress on protected circuits while maintaining signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.97 | $0.97 |
| 100+ | $0.69 | $0.69 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.49 | $0.49 |
| 3,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 5.5V.
The typical clamping voltage is 14V at a peak pulse current of 2.5A (8/20µs).
It has 6 unidirectional channels.
It is available in a 14-UFDFN package with a supplier device package of 14-USON (3.5x1.35).
The operating temperature range is -40°C to 125°C.
It is designed for HDMI applications.
