TPD5S116YFFR The TPD5S116YFFR from Texas Instruments is a specialized HDMI companion IC featuring a 5-channel design. It includes a 5V load switch, level shifter, and ESD protection.
Mfr Part #:

TPD5S116YFFR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPD5S116YFFR from Texas Instruments is a specialized HDMI companion IC featuring a 5-channel design. It includes a 5V load switch, level shifter, and ESD protection.
✓ Total Stock: 8,661 pcs
$ Price Range: $0.61

TPD5S116YFFR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,636 pcs
On Request
8636 pcs On Request 1 On Request On Request 14+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPD5S116YFFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
ESD Protection
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature Range
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

TPD5S116YFFR Description

Short technical summary and product information.

The Texas Instruments TPD5S116YFFR is a single-chip HDMI interface solution designed for enhanced protection and signal integrity. This specialized IC integrates auto-direction sensing I2C level shifting buffers, a 5-V HDMI-compliant current-limited load switch, hot-plug detect functionality, and Transient Voltage Suppression (TVS) diodes for robust Electrostatic Discharge (ESD) protection on connector-side pins.



Key electrical specifications include a voltage range of 1.1V to 5.5V and a 55-mA load switch with current limit for short-circuit protection. The device supports HDMI1.3, HDMI1.4, and HDMI2.0 standards. It is designed to conform to HDMI control and 5VOUT compliance tests without external components, simplifying system design.

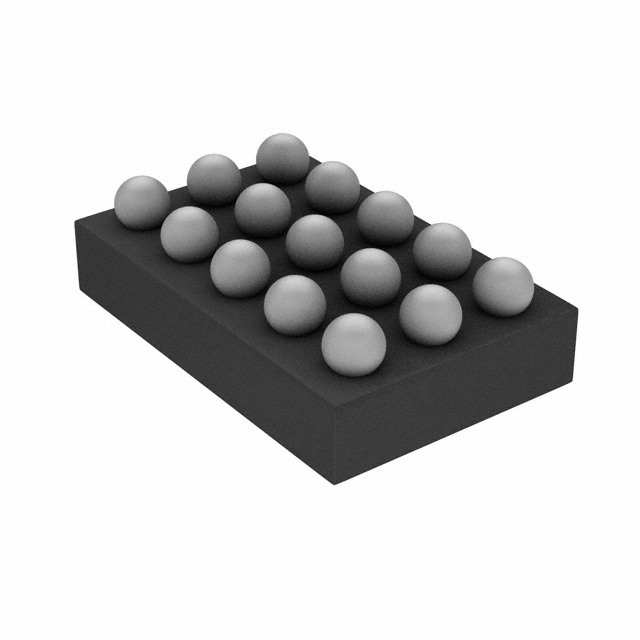

Packaged in a compact 15-DSBGA (or 15-UFBGA, DSBGA) format, the TPD5S116YFFR is suitable for surface mount applications. Its operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The integrated pull-up and pull-down resistors per HDMI specification, along with ESD protection for Ethernet and Audio Return channels, further enhance its utility in multimedia interfaces.

TPD5S116YFFR Quick Information

Product Type: HDMI Companion Chip
Canonical Name: TPD5S116 HDMI Companion Chip
Subcategory: HDMI Companion

TPD5S116YFFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPD5S116YFFR Estimated Pricing

Qty Low High
1+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPD5S116YFFR Features

  • 5-channel HDMI companion IC
  • Integrated 5V load switch
  • Auto-direction sensing I2C level shifter
  • ±15kV ESD protection on external lines
  • Supports HDMI1.3, 1.4, and 2.0 standards

TPD5S116YFFR Applications

  • HDMI interface protection
  • Multimedia device connectivity
  • Consumer electronics integration
  • Signal integrity enhancement

TPD5S116YFFR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TPD5S116YFFR?

The operating voltage range is 1.1V to 5.5V.

What type of package is the TPD5S116YFFR supplied in?

The TPD5S116YFFR is supplied in a 15-DSBGA package.

What is the operating temperature range for this HDMI companion chip?

The operating temperature range is -40°C to 85°C.

What level of ESD protection does the TPD5S116YFFR offer?

It offers ±15-kV Contact Discharge and ±15-kV Air-gap Discharge on external lines.

What is the current limit for the load switch on the TPD5S116YFFR?

The load switch has a current limit of 55 mA.
