Mfr Part #:

TPD3215M

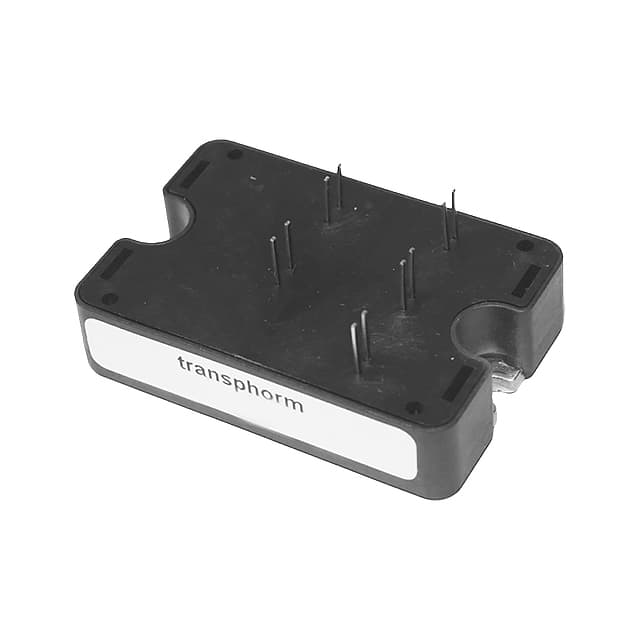

Name: TPD3215M
Brand: Transphorm
SKU: TPD3215M

Mfr Name: Transphorm

Description:

GANFET 2N-CH 600V 70A MODULE

Stock on Request

TPD3215M Description

Short technical summary and product information.

GANFET 2N-CH 600V 70A MODULE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Transphorm
Configuration	2 N-Channel (Half Bridge)
Current	70A (Tc)
Drain to Source Voltage (Vdss)	600V
Gate Charge (Qg) (Max) @ Vgs	28nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds	2260pF @ 100V
Mounting Type	Through Hole
Operating Temperature	-40°C ~ 150°C (TJ)
Power	470W
Rds On (Max) @ Id, Vgs	34mOhm @ 30A, 8V
Supplier Device Package	Module
Technology	GaNFET (Gallium Nitride)
