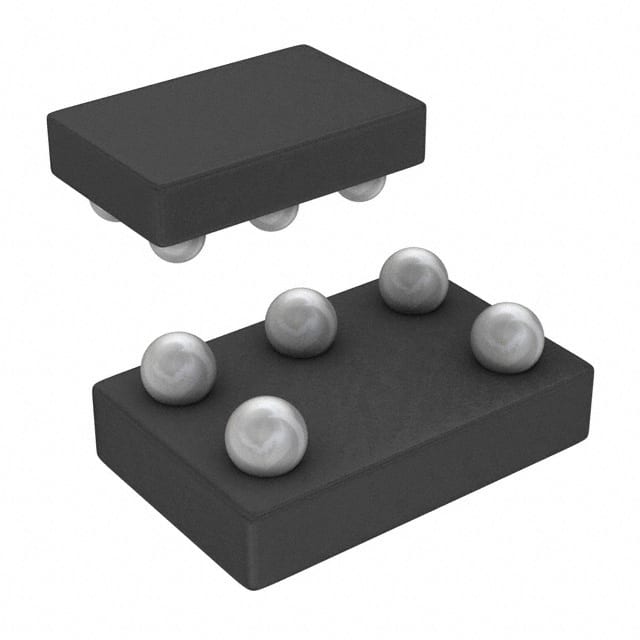

The Texas Instruments TPD2F702YFKR is a two-channel EMI filter designed for audio applications. It utilizes a Pi-style (C-R-C) filter configuration with a resistance of 15Ω and a capacitance of 5000pF.
This filter provides best-in-class EMI noise filtering for audio applications, with a -3dB bandwidth of 1.2MHz and greater than 50 dB crosstalk attenuation at 100 MHz. It also integrates ESD protection that exceeds IEC61000-4-2 (Level 4) at the connector ports.
The device operates within an industrial temperature range of -40°C to 85°C and comes in a space-saving WCSP package with flow-through pin mapping. Its ultra-low leakage current is rated at 100-nA maximum.
Key specifications include a 1.2MHz cutoff frequency, 50dB attenuation at 100MHz, and ESD protection exceeding ±30-kV IEC 61000-4-2 contact discharge.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package/case is YFK, a surface-mount package.
The operating temperature range is -40°C to 85°C.
The cutoff frequency (center/cutoff) is 1.2MHz (-3dB).
It provides ±30kV IEC 61000-4-2 contact and air-gap discharge, and ±15kV HBM. On the connector side it meets IEC 61000-4-2 Level 4.
Attenuation is 50dB at 100MHz.
It is a 2nd order filter with 2 channels.
R = 15Ω, C = 5000pF.
