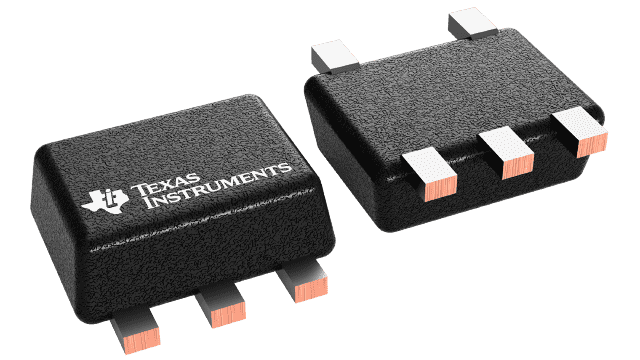

The TPD2E2U06 is a dual-channel, low-capacitance Transient Voltage Suppressor (TVS) diode from Texas Instruments, engineered for effective electrostatic discharge (ESD) protection. This device meets IEC 61000-4-2 Level 4 standards, providing ±25 kV of contact discharge and ±30 kV of air-gap discharge protection.
With a low I/O capacitance of 1.5 pF, the TPD2E2U06 is suitable for high-speed interfaces such as USB 2.0, Ethernet, MIPI Bus, LVDS, and I2C. It also offers IEC 61000-4-5 surge protection with a peak pulse current rating of 5.5 A for an 8/20 µs pulse. The device features a minimum DC breakdown voltage of 6.5 V and an ultra-low leakage current of only 10 nA, ensuring minimal impact on signal integrity.
Designed for industrial applications, the TPD2E2U06 operates across an extended temperature range of -40°C to +125°C. It is available in small, easy-to-route packages like SOT-5X3 (DRL) and SC70-3 (DCK), making it ideal for space-constrained designs. Its low ESD clamping voltage further enhances its protective capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPD2E2U06 provides IEC 61000-4-2 Level 4 ESD protection, with ±25 kV for contact discharge and ±30 kV for air-gap discharge.
The device offers IEC 61000-4-5 surge protection with a peak pulse current of 5.5 A for an 8/20 µs pulse.
The typical I/O capacitance for the TPD2E2U06 is 1.5 pF.
The minimum DC breakdown voltage for the TPD2E2U06 is 6.5 V.
The TPD2E2U06 operates within an industrial temperature range of -40°C to +125°C.
The TPD2E2U06 is suitable for protecting interfaces such as USB 2.0, Ethernet, MIPI Bus, LVDS, and I2C.
The TPD2E2U06 is available in SOT-5X3 (DRL) and SC70-3 (DCK) packages.
