TPD12S520RMNR The TPD12S520RMNR is a single-chip ESD protection device for HDMI receiver ports from Texas Instruments. It offers robust protection with low capacitance on high-speed data lines.
Mfr Part #:

TPD12S520RMNR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPD12S520RMNR is a single-chip ESD protection device for HDMI receiver ports from Texas Instruments. It offers robust protection with low capacitance on high-speed data lines.
✓ Total Stock: 36,360 pcs
$ Price Range: $0.32

TPD12S520RMNR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPD12S520RMNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
ESD Protection
Frequency
Lead Spacing
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

TPD12S520RMNR Description

Short technical summary and product information.

The Texas Instruments TPD12S520RMNR is a specialized integrated circuit designed for protecting high-definition multimedia interface (HDMI) receiver ports. This single-chip solution provides electrostatic discharge (ESD) protection using transient voltage suppression (TVS) diodes, minimizing signal glitching on high-speed differential signals.



The device features a low capacitance of 0.8 pF for the Transition Minimized Differential Signaling (TMDS) lines, ensuring signal integrity. It also includes protection for low-speed control lines with a typical capacitance of 3.5 pF. The TPD12S520RMNR supports all HDMI 1.3 and HDMI 1.4 data rates, with a -3 dB frequency greater than 3 GHz.

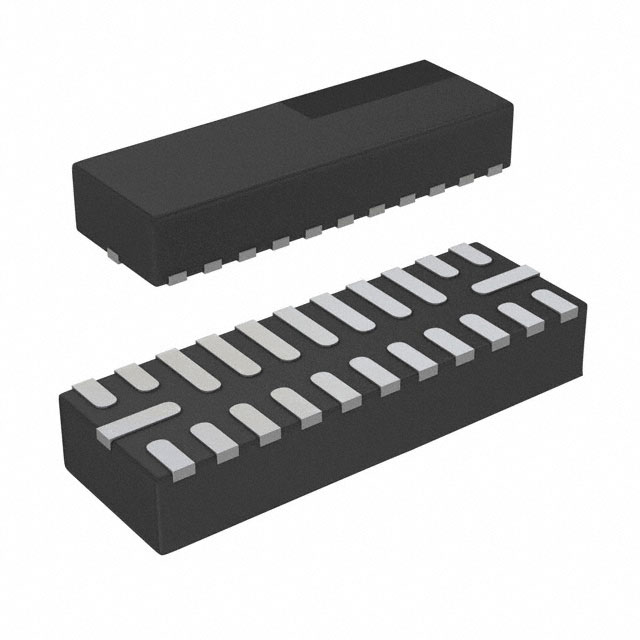

Available in a 24-WQFN surface mount package, this IC operates within a temperature range of -40°C to 85°C. It is designed for applications requiring robust ESD protection for digital video interfaces, offering a compact and effective solution for safeguarding sensitive HDMI receiver ports.



Key specifications include ±8-kV contact discharge ESD protection per IEC 61000-4-2 Level 4 on external lines. The device also offers backdrive protection and is manufactured using lead-free processes.

TPD12S520RMNR Quick Information

Product Type: HDMI Receiver Port Protection IC
Canonical Name: TPD12S520 Single-Chip HDMI Receiver Port Protection and Interface Device
Subcategory: Specialized Interface

TPD12S520RMNR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Package

TPD12S520RMNR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPD12S520RMNR Features

  • Single-chip HDMI receiver port protection.
  • ±8-kV ESD protection per IEC 61000-4-2.
  • Low 0.8-pF capacitance on TMDS lines.
  • Supports HDMI 1.3 and 1.4 data rates.
  • Surface mount 24-WQFN package.

TPD12S520RMNR Applications

  • Protects HDMI receiver ports.
  • Ensures signal integrity for video.
  • Ideal for digital display interfaces.
  • Suitable for consumer electronics.

TPD12S520RMNR FAQs

6 frequently asked questions generated from this part’s specifications.
What type of protection does the TPD12S520RMNR offer?

The TPD12S520RMNR offers single-chip electro-static discharge (ESD) circuit protection for HDMI receiver ports.

What is the ESD protection level for the TPD12S520RMNR?

It provides IEC 61000-4-2 Level 4 ESD protection with ±8-kV contact discharge on external lines.

What is the capacitance on the high-speed TMDS lines?

The high-speed TMDS lines have a capacitance of 0.8 pF.

What operating temperature range is supported?

The operating temperature range is -40°C to 85°C.

What package type is the TPD12S520RMNR available in?

It is available in a 24-WQFN (4.5x1.5 mm) surface mount package.

What is the RoHS status of this component?

The RoHS status is RoHS3 Compliant.
