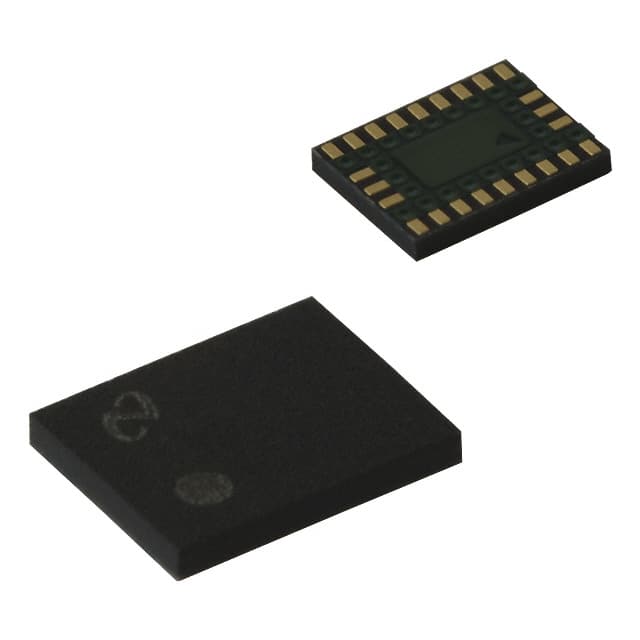

TPD12S016RKTR The TPD12S016RKTR from Texas Instruments is a specialized HDMI companion IC. It offers 12-channel ESD protection and an I2C level shifting buffer.
Mfr Part #:

TPD12S016RKTR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPD12S016RKTR from Texas Instruments is a specialized HDMI companion IC. It offers 12-channel ESD protection and an I2C level shifting buffer.
✓ Total Stock: 30,857 pcs
$ Price Range: $0.47

TPD12S016RKTR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
23,546 pcs
On Request
23546 pcs On Request 1 On Request On Request 1210+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,077 pcs
On Request
1077 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
234 pcs
On Request
234 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPD12S016RKTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
ESD Protection
Industrial Grade
Interface
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature Range
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

TPD12S016RKTR Description

Short technical summary and product information.

The TPD12S016RKTR is a single-chip High Definition Multimedia Interface (HDMI) device from Texas Instruments. It integrates auto-direction sensing I2C voltage level shift buffers, a load switch, and low capacitance high-speed electrostatic discharge (ESD) transient voltage suppression (TVS) protection diodes.



This device features 12 channels of ESD protection, conforming to IEC 61000-4-2 with ±8-kV contact discharge protection. It supports HDMI 1.4 data rates and includes an on-chip load switch with a 55-mA current limit at the HDMI 5V_OUT pin. The integrated I2C level shifter includes a one-shot circuit designed to drive long HDMI cables.



Packaged in a 24-UFQFN, the TPD12S016RKTR is designed for surface mount applications. It operates within a voltage range of 4.5V to 5.5V and is suitable for applications requiring HDMI interface, I2C buffering, and robust ESD protection.



Note: This part is marked as NOT RECOMMENDED FOR NEW DESIGNS.

TPD12S016RKTR Quick Information

Product Type: HDMI Companion Chip
Canonical Name: TPD12S016RKTR HDMI Companion Chip with I2C Level Shifting Buffer, 12-Channel ESD Protection, and Current-Limit Load Switch
Subcategory: Specialized Interface ICs

TPD12S016RKTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPD12S016RKTR Estimated Pricing

Qty Low High
1+ $0.47 $0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPD12S016RKTR Features

  • 12-channel ESD protection diodes.
  • Integrated I2C level shifter.
  • On-chip 55mA current-limit load switch.
  • Supports HDMI 1.4 data rates.
  • Low differential capacitance matching.

TPD12S016RKTR Applications

  • Used in HDMI data transmission systems
  • Ideal for multimedia device interfaces
  • Provides ESD protection in electronic circuits
  • Suitable for consumer electronics

TPD12S016RKTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TPD12S016RKTR?

The operating voltage range is 4.5V to 5.5V.

What package type is the TPD12S016RKTR available in?

The TPD12S016RKTR is available in a 24-UFQFN package.

What is the operating temperature range for this HDMI companion chip?

The operating temperature range is -40°C to 85°C.

What is the RoHS status of the TPD12S016RKTR?

The RoHS status is RoHS3 Compliant.

What level of ESD protection does the TPD12S016RKTR offer?

It offers ±8kV contact discharge ESD protection.

What is the current limit for the on-chip load switch?

The on-chip load switch has a current limit of 55 mA.
