TPD12S015AYFFR The Texas Instruments TPD12S015AYFFR is an HDMI companion chip featuring high-speed ESD protection and an integrated boost converter. It operates within an industrial temperature range.
Mfr Part #:

TPD12S015AYFFR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPD12S015AYFFR is an HDMI companion chip featuring high-speed ESD protection and an integrated boost converter. It operates within an industrial temperature range.
✓ Total Stock: 86,602 pcs
$ Price Range: $0.96

TPD12S015AYFFR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
42,880 pcs
On Request
42880 pcs On Request 1 On Request On Request 13+ On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
37,667 pcs
On Request
37667 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
4,181 pcs
On Request
4181 pcs On Request 1 On Request On Request 11+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,874 pcs
On Request
1874 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPD12S015AYFFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Interface
Mounting Type
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

TPD12S015AYFFR Description

Short technical summary and product information.

The TPD12S015AYFFR from Texas Instruments is an integrated HDMI companion chip designed for portable applications. It offers 8 low-capacitance ESD clamps that support HDMI 1.3 and 1.4 data rates, ensuring signal integrity.



This device includes an internal boost converter capable of generating a 5V output from a 2.3V to 5.5V battery input, meeting HDMI 5VOUT specifications. It also features auto-direction sensing level shifting for CEC, SDA, and SCL paths, along with IEC 61000-4-2 (Level 4) system-level ESD compliance.

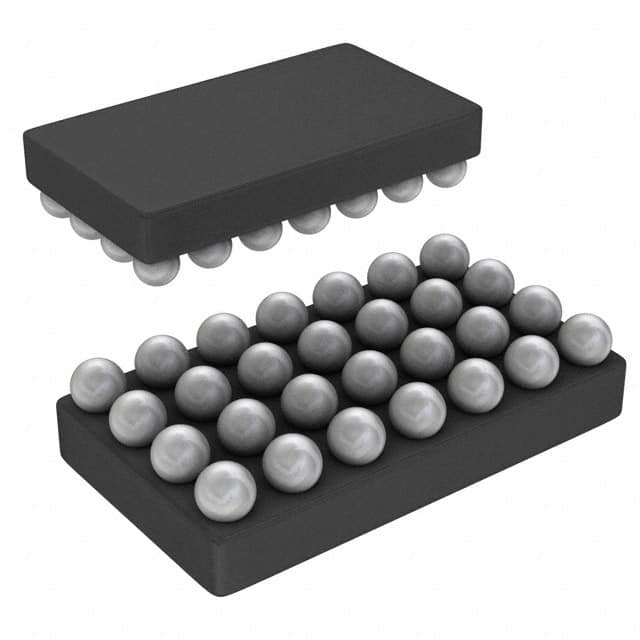

The TPD12S015AYFFR is housed in a compact 28-pin DSBGA (YFF) package with a 0.4mm pitch, designed for surface mounting. It operates across an industrial temperature range of -40°C to 85°C. The part is supplied on tape and reel in standard quantities of 3000 units.



This chip is an improved drop-in replacement for the TPD12S015A, offering excellent matching capacitance in each differential signal pair, which is advantageous over discrete ESD clamp solutions.

TPD12S015AYFFR Quick Information

Product Type: HDMI Companion Chip
Canonical Name: TPD12S015A HDMI Companion Chip with Step-Up DC-DC, I2C Level Shifter, and High-Speed ESD Clamps
Subcategory: Specialized Interface ICs

TPD12S015AYFFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPD12S015AYFFR Estimated Pricing

Qty Low High
1+ $0.96 $0.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPD12S015AYFFR Features

  • Integrated HDMI companion chip solution.
  • 8 low capacitance ESD clamps.
  • Internal 5V boost converter.
  • IEC 61000-4-2 (Level 4) ESD compliance.
  • Industrial temperature range: -40°C to 85°C.

TPD12S015AYFFR Applications

  • Ideal for portable audio/video.
  • Suitable for smartphone designs.
  • Used in HDMI interface circuits.
  • Provides robust ESD protection.

TPD12S015AYFFR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TPD12S015AYFFR?

The TPD12S015AYFFR operates from -40°C to 85°C.

What type of package is the TPD12S015AYFFR in?

The TPD12S015AYFFR is in a 28-DSBGA package.

How is the TPD12S015AYFFR supplied?

The TPD12S015AYFFR is supplied on tape and reel with a standard package quantity of 3000 units.

What are the voltage ranges for the TPD12S015AYFFR?

The TPD12S015AYFFR supports a boost converter input voltage of 2.3V to 5.5V and other operating voltages from 1.1V to 3.6V.

Does the TPD12S015AYFFR meet HDMI compliance tests?

Yes, the TPD12S015AYFFR conforms to HDMI compliance tests without any external components.
