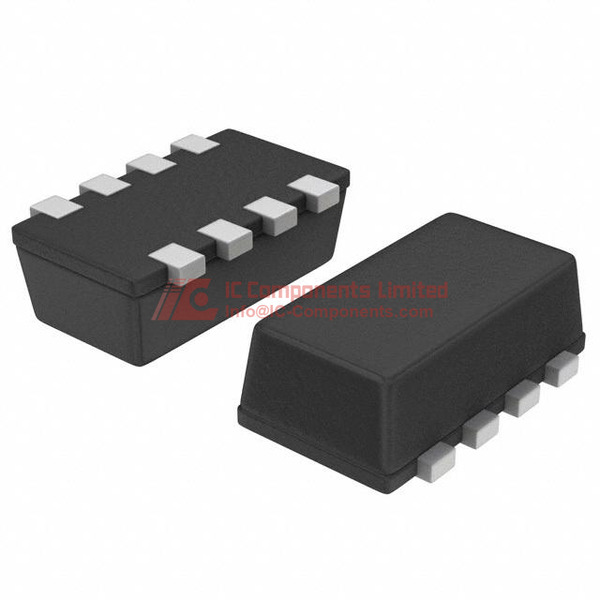

TPCF8107,LF The Toshiba TPCF8107,LF is a P-Channel MOSFET with a 30V drain-source voltage and 6A continuous drain current. It is housed in a surface-mount VS-8 package.
Mfr Part #:

TPCF8107,LF

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TPCF8107,LF is a P-Channel MOSFET with a 30V drain-source voltage and 6A continuous drain current. It is housed in a surface-mount VS-8 package.
✓ Total Stock: 200,110 pcs
$ Price Range: $2.81

TPCF8107,LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request 1347+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPCF8107,LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Drain to Source Voltage (Vdss)
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

TPCF8107,LF Description

Short technical summary and product information.

The TPCF8107,LF from Toshiba is a P-Channel MOSFET designed for various electronic applications. It features a drain-source voltage (Vdss) of 30V and a continuous drain current (Id) of 6A at 25°C. The on-resistance (Rds(on)) is specified at a maximum of 28 mOhm at 3A and 10V gate-source voltage.



This MOSFET utilizes Metal Oxide Semiconductor technology and is packaged in a VS-8 (2.9x1.5) surface-mount package. It operates at a maximum junction temperature of 150°C and has a power dissipation of 700mW (Ta). Key electrical parameters include input capacitance (Ciss) of 970pF at 10V and gate charge (Qg) of 22nC at 10V.



The TPCF8107,LF is suitable for applications requiring efficient switching and power management. Its surface-mount design facilitates integration into compact circuit boards. The component is part of the U-MOSVI series.

TPCF8107,LF Quick Information

Product Type: MOSFET
Series: U-MOSVI
Canonical Name: TPCF8107,LF P-Channel MOSFET
Subcategory: P-Channel

TPCF8107,LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TPCF8107,LF Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPCF8107,LF Features

  • P-Channel MOSFET with 30V drain-source voltage.
  • Continuous drain current of 6A at 25°C.
  • Low on-resistance of 28 mOhm maximum.
  • Surface mount VS-8 package for compact designs.
  • Operates up to 150°C junction temperature.

TPCF8107,LF Applications

  • Power management in portable devices
  • Load switching in battery-powered circuits
  • DC-DC converter output switching
  • P-channel polarity circuit protection

TPCF8107,LF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage (Vdss) of the TPCF8107,LF MOSFET?

The drain-source voltage (Vdss) for the TPCF8107,LF is 30V.

What is the continuous drain current (Id) for the TPCF8107,LF at 25°C?

The continuous drain current (Id) for the TPCF8107,LF at 25°C is 6A.

What is the maximum on-resistance (Rds(on)) for the TPCF8107,LF?

The maximum on-resistance (Rds(on)) for the TPCF8107,LF is 28 mOhm at 3A and 10V.

What type of package is the TPCF8107,LF MOSFET in?

The TPCF8107,LF MOSFET is in a VS-8 (2.9x1.5) surface-mount package.

What is the maximum operating temperature for the TPCF8107,LF?

The maximum operating temperature (junction temperature) for the TPCF8107,LF is 150°C.

Is the TPCF8107,LF RoHS compliant?

The TPCF8107,LF is RoHS3 Compliant.
