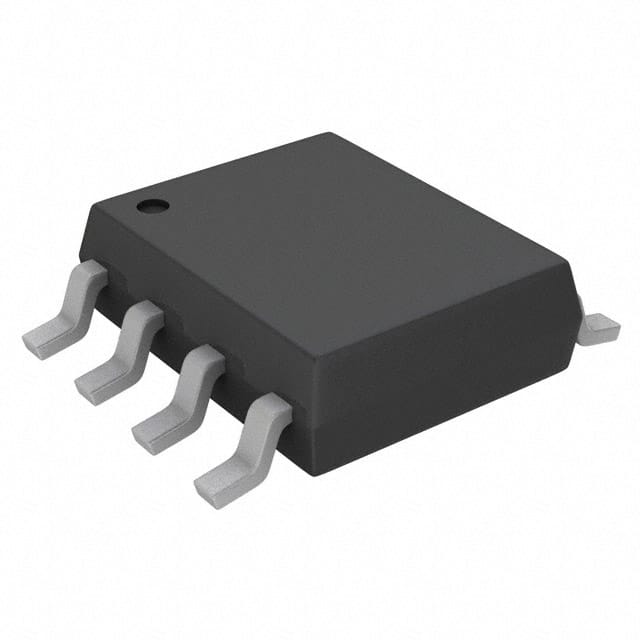

The Toshiba TPC8407,LQ(S is a MOSFET array featuring both N-Channel and P-Channel transistors. It offers a drain-to-source voltage (Vdss) of 30V and supports continuous drain currents of 9A for the N-Channel and 7.4A for the P-Channel at 25°C. The device exhibits a low on-resistance (Rds On) of 17mOhm at 4.5A and 10V gate-source voltage, with a maximum power dissipation of 450mW.
Designed for logic-level gate operation, this MOSFET array has a gate threshold voltage (Vgs(th)) of 2.3V at 100µA. Key electrical parameters include an input capacitance (Ciss) of 1190pF at 10V Vds and a gate charge (Qg) of 17nC at 10V Vgs. The operating temperature range is up to 150°C (TJ).
This component is housed in an 8-SOP package suitable for surface mounting. The package dimensions are 8-SOIC with a width of 0.154 inches (3.90mm). It is supplied in tape and reel packaging with a standard quantity of 2500 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.64 | $1.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) for the TPC8407,LQ(S is 30V.
The continuous drain current ratings are 9A for the N-Channel and 7.4A for the P-Channel at 25°C.
The Rds On (Max) is 17mOhm when the drain current is 4.5A and the gate-source voltage is 10V.
The maximum operating temperature is 150°C (TJ).
The TPC8407,LQ(S is in an 8-SOP package, specifically an 8-SOIC (0.154", 3.90mm Width).
The RoHS status is listed as RoHS Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
