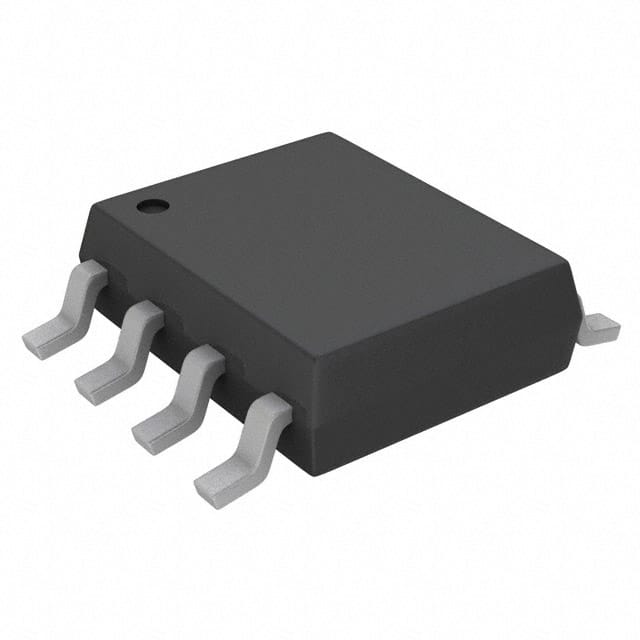

TPC8065-H The Toshiba TPC8065-H is an N-Channel MOSFET with a 30V drain-source voltage and 13A continuous drain current. It is designed for surface mount applications.
Mfr Part #:

TPC8065-H

Available from 3 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TPC8065-H is an N-Channel MOSFET with a 30V drain-source voltage and 13A continuous drain current. It is designed for surface mount applications.
✓ Total Stock: 588,000 pcs
$ Price Range: $2.81

TPC8065-H Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
500,000 pcs
On Request
500000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
49,000 pcs
On Request
49000 pcs On Request 1 On Request On Request 17+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
39,000 pcs
On Request
39000 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPC8065-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Drain to Source Voltage (Vdss)
FET Type
Failure Rate
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

TPC8065-H Description

Short technical summary and product information.

The Toshiba TPC8065-H is a discrete semiconductor component belonging to the Transistors - FETs, MOSFETs - Single category. This N-Channel MOSFET features a maximum drain-to-source voltage (Vdss) of 30V and a continuous drain current (Id) of 13A at 25°C. Its on-resistance (Rds On) is a maximum of 11.6mOhm at 6.5A and 10V gate-source voltage.



The device operates with a drive voltage range of 4.5V to 10V and has a gate threshold voltage (Vgs(th)) maximum of 2.3V at 200μA. The input capacitance (Ciss) is a maximum of 1350pF at 10V. The MOSFET has a maximum power dissipation of 1W (Ta) and an operating temperature range up to 150°C (TJ).



Packaged in an 8-SOIC surface mount package, the TPC8065-H is suitable for various power management applications. It is supplied in Tape & Reel (TR) packaging. The component is RoHS compliant and has a Moisture Sensitivity Level (MSL) of 1.

TPC8065-H Quick Information

Product Type: MOSFET
Series: U-MOSVII-H
Canonical Name: TPC8065-H N-Channel MOSFET
Subcategory: Single

TPC8065-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPC8065-H Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPC8065-H Features

  • N-Channel MOSFET technology.
  • 30V drain-to-source voltage rating.
  • 13A continuous drain current capability.
  • Low 11.6mOhm maximum on-resistance.
  • Surface mount 8-SOIC package.

TPC8065-H Applications

  • Used in DC-DC converter circuits.
  • Suitable for load switching applications.
  • Ideal for power management in portable devices.
  • Can be used in motor control circuits.

TPC8065-H FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the TPC8065-H?

30V.

What package does the TPC8065-H come in?

8-SOIC surface mount package.

What is the maximum operating junction temperature?

150°C.

What is the continuous drain current rating?

13A at 25°C.

What is the on-resistance?

11.6mOhm at 6.5A and 10V.

What is the gate threshold voltage?

2.3V maximum at 200μA.
