Mfr Part #:

TPA6047A4RHBR

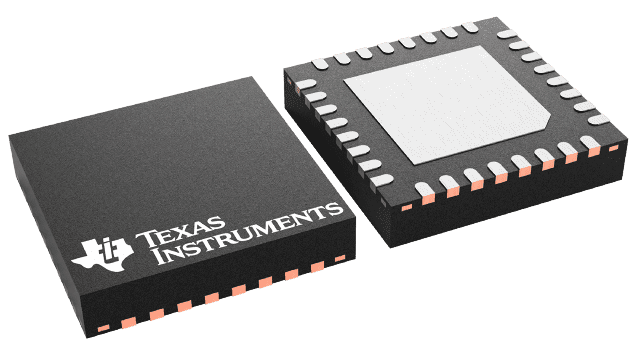

The Texas Instruments TPA6047A4RHBR is a stereo Class-AB speaker and headphone amplifier. It features a 4.75V LDO and operates from a 5V supply.

✓ Total Stock: 71,474 pcs

$ Price Range: $1.48

TPA6047A4RHBR Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	60,267 pcs On Request	60267 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	7,081 pcs On Request	7081 pcs	On Request	1	On Request	On Request	09+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	4,126 pcs On Request	4126 pcs	On Request	1	On Request	On Request	1106+	On Request	On Request

TPA6047A4RHBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Gain	-1.5 V/V
Lead Style	Exposed Pad
Operating Temperature	-40 to 85 °C

View Similar Products (0)

TPA6047A4RHBR Description

Short technical summary and product information.

The TPA6047A4RHBR from Texas Instruments is a versatile stereo audio power amplifier and DirectPath headphone amplifier. It is housed in a thermally enhanced, space-saving 32-pin VQFN package.

The speaker amplifier is capable of delivering 2.1 W per channel continuously into 4-Ohm loads when powered by a 5V supply. The headphone amplifier can provide a minimum of 100 mW into 16-Ohm loads with 10% THD+N from the same 5V supply. The device includes an internal 4-step gain control for the speaker amplifier, offering selectable gains of 10, 12, 15.6, and 21.6 dB. The headphone amplifier has a fixed gain of -1.5 V/V.

This amplifier integrates a 4.75V low dropout regulator (LDO) for CODEC power. Independent shutdown controls are provided for the speaker amplifier, headphone amplifier, and the LDO, allowing for flexible power management. The fully differential architecture and high PSRR contribute to excellent RF rectification immunity. Output short-circuit and thermal protection are also included.

Applications for the TPA6047A4RHBR include notebook computers and portable DVD players, where its compact size and integrated features are beneficial.

TPA6047A4RHBR Quick Information

Product Type: Audio Amplifier

Series: TPA6047A4

Canonical Name: TPA6047A4RHBR Stereo Class-AB Speaker & Headphone Amplifier with 4.75-V LDO

Subcategory: Class-AB Amplifier

TPA6047A4RHBR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 3

REACH Status: REACH Unaffected

TPA6047A4RHBR Estimated Pricing

Qty	Low	High
1+	$1.48	$1.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA6047A4RHBR Features

2.1W stereo speaker output into 4 Ohms.
100mW headphone output into 16 Ohms.
Integrated 4.75V low dropout regulator.
Selectable speaker gain and fixed headphone gain.
32-pin VQFN package for space savings.

TPA6047A4RHBR Applications

Ideal for notebook computers.
Suitable for portable DVD players.
Used in mobile audio systems.
Applications requiring stereo amplification.

TPA6047A4RHBR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage of the TPA6047A4RHBR?

The device operates from a 5V supply and includes a 4.75V LDO.

What package is the TPA6047A4RHBR available in?

It is available in a 32-pin VQFN package.

What is the operating temperature range?

-40 to 85°C.

What is the speaker output power?

2.1W into 4-Ohm speakers at 1% THD+N from 5V supply.

What is the headphone output power?

100mW into 16-Ohm headphones at 10% THD+N from 5V supply.

What speaker gain settings are available?

The speaker gain can be set to 10, 12, 15.6, or 21.6 dB via internal 4-step control.

What is the headphone gain?

Fixed -1.5V/V gain.
