TPA6017A2PWPR The TPA6017A2PWPR is a stereo, analog input, Class-AB audio amplifier from Texas Instruments. It delivers 2W of output power per channel into a 3-ohm load.
Mfr Part #:

TPA6017A2PWPR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPA6017A2PWPR is a stereo, analog input, Class-AB audio amplifier from Texas Instruments. It delivers 2W of output power per channel into a 3-ohm load.
✓ Total Stock: 84,817 pcs
$ Price Range: $0.85

TPA6017A2PWPR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
60,267 pcs
On Request
60267 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
22,492 pcs
On Request
22492 pcs On Request 1 On Request On Request 1636+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,414 pcs
On Request
1414 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
644 pcs
On Request
644 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPA6017A2PWPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Interface
Halogen Free
Input Type
Load
Number of Pins
Operating Temperature Range
Output Power
SVHC Present
Supply Current
View Similar Products (0)

TPA6017A2PWPR Description

Short technical summary and product information.

The Texas Instruments TPA6017A2PWPR is a 1.9-W, stereo, analog input Class-AB audio amplifier designed for portable audio devices. It is capable of delivering 2 W of continuous RMS power per channel into 3- loads from a 5-V supply.



Key electrical specifications include an analog supply voltage range of 2.5 V to 5.5 V and a power stage supply range of 4.5 V to 5.5 V. The amplifier exhibits a THD + N of 0.75% at 1 kHz. It features internal gain control, eliminating the need for external gain-setting resistors, with available gain settings of 6 dB, 10 dB, 15.6 dB, and 21.6 dB (inverting).

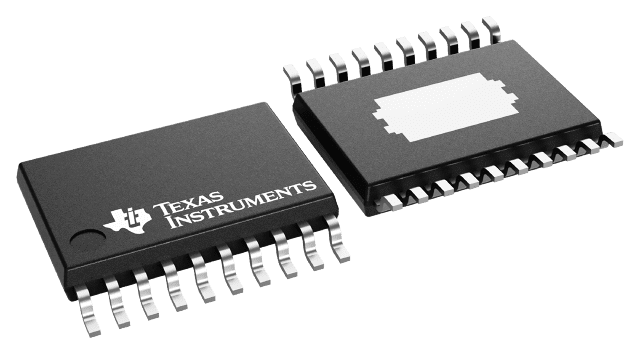

This audio amplifier operates within a temperature range of -40°C to 85°C. It utilizes a fully differential input and includes depop circuitry. The device is housed in a 20-pin HTSSOP (PWP) thermally enhanced package, measuring 41.6 mm² (6.5 mm × 6.4 mm).



Applications for the TPA6017A2PWPR include notebook computers, PDAs, and other portable audio devices where space and power efficiency are critical.

TPA6017A2PWPR Quick Information

Product Type: Audio Amplifier
Canonical Name: TPA6017A2PWPR Stereo Analog Input Class-AB Audio Amplifier
Subcategory: General-purpose audio amplifiers

TPA6017A2PWPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

TPA6017A2PWPR Estimated Pricing

Qty Low High
1+ $0.85 $0.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA6017A2PWPR Features

  • Stereo Class-AB audio amplifier.
  • 2W continuous RMS power per channel.
  • Analog input with selectable gain.
  • Wide 2.5V to 5.5V supply voltage.
  • 20-pin HTSSOP thermally enhanced package.

TPA6017A2PWPR Applications

  • Ideal for notebook computers.
  • Suitable for PDAs.
  • Used in portable audio devices.
  • Compact design for space-constrained applications.

TPA6017A2PWPR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output power of the TPA6017A2PWPR?

The TPA6017A2PWPR can deliver 2 W of continuous RMS power per channel into 3- loads from a 5-V supply.

What is the operating temperature range for this audio amplifier?

The operating temperature range for the TPA6017A2PWPR is -40°C to 85°C.

What supply voltage does the TPA6017A2PWPR require?

The analog supply voltage ranges from 2.5 V to 5.5 V, and the power stage supply ranges from 4.5 V to 5.5 V.

What type of input does the TPA6017A2PWPR use?

The TPA6017A2PWPR features an analog input type.

What are the available gain settings for the TPA6017A2PWPR?

Gain settings of 6 dB, 10 dB, 15.6 dB, and 21.6 dB (inverting) are provided.

What package is the TPA6017A2PWPR supplied in?

The TPA6017A2PWPR is supplied in a 20-pin HTSSOP (PWP) package.
