Mfr Part #:

TPA3221DDVR

The TPA3221DDVR is a Class-D audio amplifier from Texas Instruments, offering up to 100W stereo output power. It operates from a wide 7V to 30V supply voltage range.

✓ Total Stock: 12,592 pcs

$ Price Range: $1.83

TPA3221DDVR Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	7,113 pcs On Request	7113 pcs	On Request	1	On Request	On Request	19+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	4,000 pcs On Request	4000 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,470 pcs On Request	1470 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TPA3221DDVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Efficiency	90%
Mounting Type	Surface Mount
Operating Temperature	-40°C / 85°C
PSRR	60dB
SVHC Present	Not Present

View Similar Products (0)

TPA3221DDVR Description

Short technical summary and product information.

The Texas Instruments TPA3221DDVR is a high-performance Class-D audio amplifier designed for home audio applications. It delivers up to 105W stereo into a 4Ω load at 10% THD+N, and up to 208W mono into a 2Ω load. The device operates from a wide power supply range of 7V to 30V, with analog supply voltage from 5V to 30V.

Key electrical characteristics include a signal bandwidth up to 100kHz, low idle current of less than 1mA in shutdown modes, and high efficiency up to 90%. It offers selectable gains of 18dB, 24dB, 30dB, and 34dB, and supports differential or single-ended analog inputs. Integrated protection features include undervoltage, current limit, short circuit, clipping detection, and thermal shutdown.

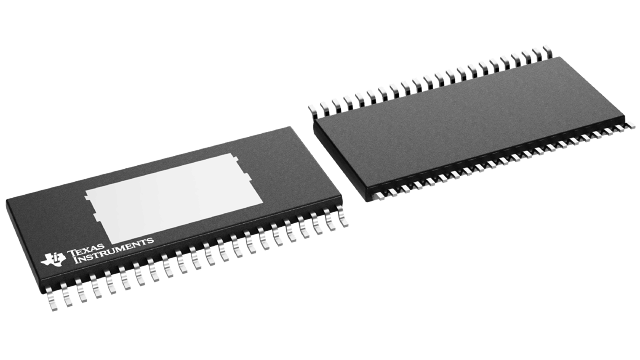

The TPA3221DDVR is available in a 44-pin HTSSOP package with a thermal pad. Its pin-compatible family offers various voltage and power level options for design flexibility. This amplifier is suitable for speaker, TV, and soundbar audio applications requiring high-fidelity sound reproduction.

TPA3221DDVR Quick Information

Product Type: Class-D Audio Amplifier

Canonical Name: TPA3221DDVR Class-D Audio Amplifier

Subcategory: Class-D Amplifier

TPA3221DDVR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPA3221DDVR Estimated Pricing

Qty	Low	High
1+	$1.83	$1.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA3221DDVR Features

100W stereo, 200W mono output power.
Wide 7V to 30V supply voltage operation.
High efficiency up to 90% at 4 Ohm.
Low idle current and shutdown modes.
Integrated protection features for reliability.

TPA3221DDVR Applications

Ideal for home audio systems.
Suitable for TV and soundbar applications.
Used in powered speaker designs.
High-fidelity audio reproduction.

TPA3221DDVR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output power of the TPA3221DDVR?

The TPA3221DDVR delivers up to 105W per channel into 4Ω at 10% THD+N in stereo mode, and up to 208W into 2Ω in mono mode at 10% THD+N.

What is the operating temperature range?

The TPA3221DDVR operates from -40°C to 85°C.

What package is the TPA3221DDVR available in?

The TPA3221DDVR is available in a 14mm x 8.1mm HTSSOP surface-mount package.

What is the efficiency of the TPA3221DDVR?

The TPA3221DDVR achieves 90% efficiency into 4Ω loads.

What is the total harmonic distortion plus noise?

The typical THD+N is 0.02% at 1kHz.

What is the signal-to-noise ratio?

The SNR is greater than 108dB (A-weighted).

What are the selectable gain options?

The selectable gains are 18dB, 24dB, 30dB, and 34dB.
