DistyParts Icon

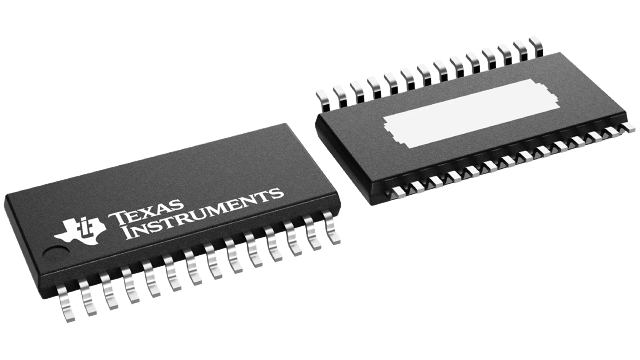

TPA3136D2PWPR The TPA3136D2PWPR is a 20W stereo Class-D audio amplifier from Texas Instruments. It operates from a 4.5V to 14.4V supply and features low EMI.
Mfr Part #:

TPA3136D2PWPR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPA3136D2PWPR is a 20W stereo Class-D audio amplifier from Texas Instruments. It operates from a 4.5V to 14.4V supply and features low EMI.
✓ Total Stock: 118,305 pcs
$ Price Range: $0.58

TPA3136D2PWPR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
106,353 pcs
On Request
106353 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,935 pcs
On Request
9935 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,012 pcs
On Request
1012 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,005 pcs
On Request
1005 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPA3136D2PWPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Efficiency
Gain
Lead Style
Operating Temperature
Package Quantity
SVHC Present
Supply Voltage
View Similar Products (0)

TPA3136D2PWPR Description

Short technical summary and product information.

The Texas Instruments TPA3136D2PWPR is an efficient Class-D audio power amplifier designed for driving bridged-tied stereo speakers. It delivers up to 20W per channel into 6-ohm loads from a 12V supply or 8-ohm loads from a 13V supply, with a wide supply voltage range of 4.5V to 14.4V.



This amplifier boasts up to 90% efficiency, eliminating the need for heatsinks. It features enhanced EMI performance with spread spectrum technology and includes SpeakerGuard™ speaker protection, which offers power limiting and DC protection. The device also provides robust protection against pin-to-pin, pin-to-ground, and pin-to-power shorts, as well as thermal protection.



With a fixed gain of 26dB, the TPA3136D2PWPR supports single-ended or differential analog inputs and offers click-and-pop-free startup. It operates within a temperature range of -40°C to 85°C and is available in a 28-pin HTSSOP package.



Applications include home audio systems, TV soundbars, and other speaker-driving applications where high efficiency and low EMI are critical.

TPA3136D2PWPR Quick Information

Product Type: Class-D Audio Amplifier
Series: TPA3136D2
Canonical Name: Texas Instruments TPA3136D2PWPR Class-D Audio Amplifier
Subcategory: Class-D

TPA3136D2PWPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPA3136D2PWPR Estimated Pricing

Qty Low High
1+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA3136D2PWPR Features

  • Delivers 20 W output power per channel.
  • Achieves up to 90% Class-D efficiency.
  • Operates from 4.5 V to 14.4 V supply.
  • Features a fixed gain of 26 dB.
  • Low THD+N of 0.05% at 1 W.

TPA3136D2PWPR Applications

  • Ideal for home audio systems.
  • Suitable for TV soundbar applications.
  • Used in portable speaker designs.
  • Powers small to medium speaker arrays.

TPA3136D2PWPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the typical output power of the TPA3136D2PWPR?

The TPA3136D2PWPR typically provides 20 W of output power per channel into 6 Ω loads at 10% THD+N from a 12-V supply, or 20 W per channel into 8 Ω loads at 10% THD+N from a 13-V supply.

What is the efficiency of the TPA3136D2PWPR?

The TPA3136D2PWPR has a typical efficiency of 90% when operating with an 8 Ω load.

What is the THD+N of the TPA3136D2PWPR?

The TPA3136D2PWPR has a maximum THD+N of 0.05% at 1 W/4 Ω/1 kHz.

What is the supply voltage range for the TPA3136D2PWPR?

The TPA3136D2PWPR operates within a supply voltage range of 4.5 V to 14.4 V.

What is the fixed gain of the TPA3136D2PWPR?

The TPA3136D2PWPR has a fixed gain of 26 dB.

What is the operating temperature range for the TPA3136D2PWPR?

The TPA3136D2PWPR is specified for an operating temperature range of -40 °C to 85 °C.

What is the package type of the TPA3136D2PWPR?

The TPA3136D2PWPR is available in an HTSSOP package with 28 pins.

Home
Account

Categories
