Mfr Part #:

TPA3132D2RHBR

The Texas Instruments TPA3132D2RHBR is a Class-D audio amplifier offering 25W stereo or 50W mono output. It operates from a wide 4.5V to 26V supply voltage range.

✓ Total Stock: 24,693 pcs

$ Price Range: $0.98

TPA3132D2RHBR Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	20,000 pcs On Request	20000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	3,083 pcs On Request	3083 pcs	On Request	1	On Request	On Request	1802+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,145 pcs On Request	1145 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	465 pcs On Request	465 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

TPA3132D2RHBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Mounting Type	Surface Mount
Number of Pins	32
Operating Temperature	-40°C to 85°C

View Similar Products (0)

TPA3132D2RHBR Description

Short technical summary and product information.

The TPA3132D2RHBR from Texas Instruments is an analog input, Class-D audio amplifier designed for home audio, haptics, and piezo applications. It supports stereo configurations with up to 25W output power into an 8-ohm load at 19V, or mono configurations up to 50W.

This amplifier operates over a wide supply voltage range of 4.5V to 26V, making it versatile for various power requirements. It boasts high efficiency, exceeding 90%, with low idle loss, potentially eliminating the need for a heatsink. The device features advanced modulation schemes and multiple switching frequencies, including AM avoidance and master/slave synchronization, with frequencies up to 1.2MHz.

Key electrical characteristics include a minimum load impedance of 2 ohms and a typical RDS(on) of 0.12 ohms. The THD + N at 1 kHz is kept below 0.1%. It operates within an ambient temperature range of -40°C to 85°C.

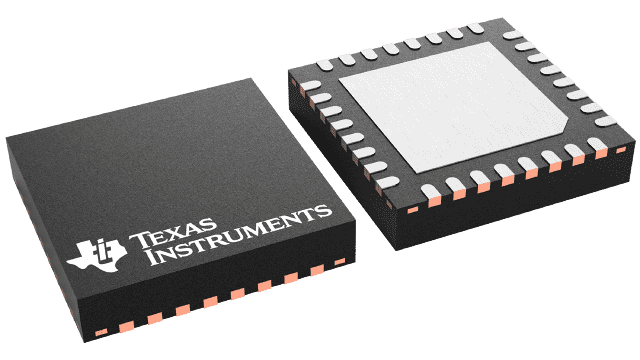

The TPA3132D2RHBR is housed in a 32-pin VQFN package measuring 5mm x 5mm, designed for surface mounting. It includes integrated self-protection circuits for overvoltage, undervoltage, overtemperature, DC-detect, and short circuits with error reporting.

TPA3132D2RHBR Quick Information

Product Type: Class-D Audio Amplifier

Canonical Name: TPA3132D2RHBR Class-D Audio Amplifier

Subcategory: Class-D Amplifier

TPA3132D2RHBR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPA3132D2RHBR Estimated Pricing

Qty	Low	High
1+	$0.98	$0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA3132D2RHBR Features

25W stereo or 50W mono output.
Wide 4.5V to 26V supply voltage.
Over 90% power efficiency.
Up to 1.2MHz switching frequency.
Integrated self-protection circuits.

TPA3132D2RHBR Applications

Suitable for home audio systems.
Used in haptics and piezo applications.
Ideal for portable audio devices.
Enables filter-free Class-D designs.

TPA3132D2RHBR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output power of the TPA3132D2RHBR?

25W per channel in stereo mode and 50W in mono mode.

What is the supply voltage range?

4.5V to 26V.

What is the operating temperature range?

-40°C to 85°C.

What package does the TPA3132D2RHBR come in?

A 32-pin VQFN (RHB) package measuring 5mm × 5mm.

What is the efficiency of this amplifier?

Greater than 90% power efficiency.

What is the maximum switching frequency?

Up to 1.2MHz.

What is the typical RDS(on)?

0.12Ω typical.
