TPA2038D1YFFR The Texas Instruments TPA2038D1YFFR is a filter-free mono Class-D audio power amplifier. It delivers 3.2W into 4 ohms from a 5V supply.
Mfr Part #:

TPA2038D1YFFR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPA2038D1YFFR is a filter-free mono Class-D audio power amplifier. It delivers 3.2W into 4 ohms from a 5V supply.
✓ Total Stock: 368,296 pcs
$ Price Range: $0.36

TPA2038D1YFFR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
361,600 pcs
On Request
361600 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,387 pcs
On Request
4387 pcs On Request 1 On Request On Request 11 On Request On Request
Rayichip ✓
Non-Authorised Inventory information
1,228 pcs
On Request
1228 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,081 pcs
On Request
1081 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPA2038D1YFFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Efficiency
Gain
Mounting Type
Operating Temperature
PSRR
Pitch
Quiescent Current
SVHC Present
Tape & Reel
View Similar Products (0)

TPA2038D1YFFR Description

Short technical summary and product information.

The TPA2038D1YFFR from Texas Instruments is a high-efficiency, filter-free Class-D audio power amplifier designed for mono applications. It offers a selectable gain feature, allowing users to choose between 6 dB and 12 dB.



This amplifier can deliver up to 3.2 W into a 4 ℆ load with 10% THD+N from a 5 V supply. It also provides 1.4 W into 8 ℆ at 1% THD+N and 2.5 W into 4 ℆ at 1% THD+N. The device operates with an analog supply voltage range of 2.5 V to 5.2 V and a power stage supply range of 2.5 V to 5.5 V.

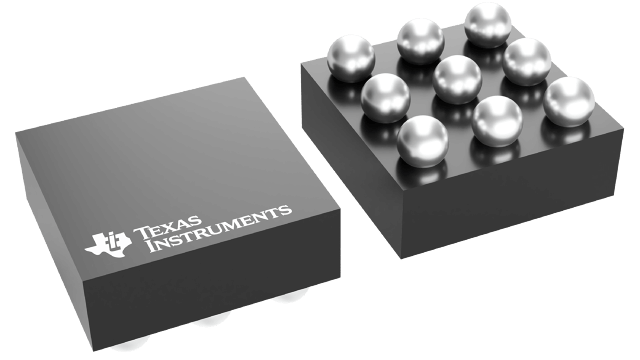

Key features include low quiescent current of 1.5 mA, low output noise of 20 µV, and 95% efficiency. It also incorporates auto-recovering short-circuit protection and thermal-overload protection. The TPA2038D1YFFR is available in a compact 9-ball, 1.21 mm x 1.16 mm, 0.4 mm pitch WCSP package, suitable for space-constrained designs.



Applications include wireless or cellular handsets, PDAs, portable navigation devices, and general portable audio devices.

TPA2038D1YFFR Quick Information

Product Type: Audio Amplifier
Canonical Name: TPA2038D1YFFR 3.2W Mono Class-D Audio Amplifier
Subcategory: Mono Class-D Amplifier

TPA2038D1YFFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPA2038D1YFFR Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPA2038D1YFFR Features

  • 3.2W output power into 4 ohms.
  • Selectable gain between 6 dB and 12 dB.
  • High efficiency up to 95%.
  • Low quiescent current of 1.5 mA.
  • Compact 0.4mm pitch WCSP package.

TPA2038D1YFFR Applications

  • Ideal for cellular handsets and PDAs.
  • Suitable for portable navigation devices.
  • Used in general portable audio devices.
  • Enables filter-free Class-D designs.

TPA2038D1YFFR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TPA2038D1YFFR?

The power stage supply voltage range is 2.5V to 5.5V, and the analog supply voltage range is 2.5V to 5.2V.

What package does the TPA2038D1YFFR come in?

It comes in a 9-ball WCSP (YFF) package measuring 1.21mm x 1.16mm with 0.4mm pitch.

What is the operating temperature range?

-40°C to 85°C.

What is the maximum output power?

3.2W into 4Ω at 10% THD+N.

What is the typical efficiency?

95%.

What is the total harmonic distortion plus noise?

0.12% at 1kHz.

What gain options are available?

Selectable gain of 6dB or 12dB via the GAIN pin.
