| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,048 pcs
|
43048 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15,841 pcs
|
15841 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,539 pcs
|
3539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
308 pcs
|
308 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Load | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| SVHC Present | |
| Tape & Reel |

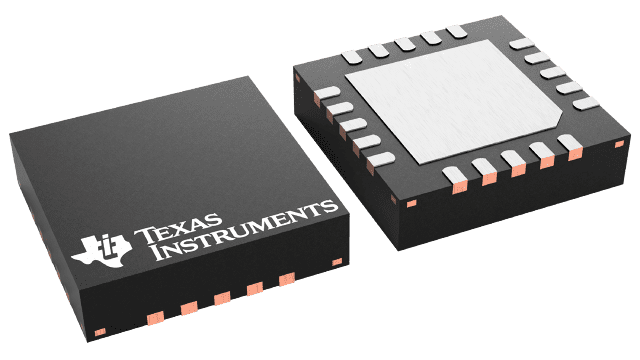

The Texas Instruments TPA2013D1RGPR is a high-efficiency Class-D audio power amplifier featuring an integrated boost converter. This device is designed to drive speakers with up to 2.7 W into a 4-ohm load, while maintaining high efficiency, typically around 85%.
It operates over a wide analog supply voltage range of 2.3 V to 5.2 V and a power stage supply range of 1.8 V to 5.5 V. The amplifier offers selectable gain settings of 2 V/V, 6 V/V, and 10 V/V, providing design flexibility. Key features include differential inputs to reduce RF common noise and a built-in input low-pass filter to decrease noise sensitivity.
Available in VQFN and DSBGA packages, the TPA2013D1RGPR is suitable for surface-mount applications. It includes thermal and short-circuit protection for enhanced reliability. The integrated boost converter offers over 90% efficiency, prolonging battery life in portable devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPA2013D1RGPR has a maximum output power of 2.7 W when driving a 4-ohm load from a 3.6-V supply.
The operating temperature range for the TPA2013D1RGPR is -40 to 85 °C.
The TPA2013D1RGPR is available in VQFN and DSBGA packages.
The TPA2013D1RGPR supports a minimum load impedance of 4 Ω.
The amplifier has selectable gain settings of 2 V/V, 6 V/V, and 10 V/V.
The TPA2013D1RGPR has a typical efficiency of 85%. With its integrated boost converter, efficiency is over 90%.
