| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Quiescent Current | |
| Tape & Reel |

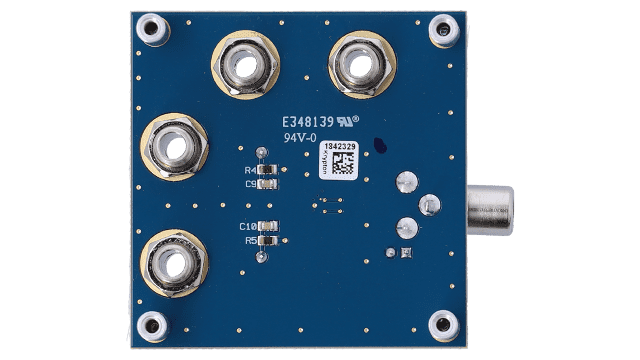

The TPA2011D1YFF evaluation module (EVM) from Texas Instruments provides a complete platform for evaluating the TPA2011D1 audio power amplifier. This Class-D amplifier is designed for mono audio applications and offers a powerful solution capable of delivering 1.47 W into 8 ohms and 2.57 W into 4 ohms at 1% THD+N.
The EVM includes the TPA2011D1 device along with all necessary components for its evaluation. Key features of the amplifier include an integrated feedback resistor of 300 kΩ, an integrated image reject filter for DAC noise reduction, low output noise of 20 μV, and low quiescent current of 1.5 mA. It also incorporates auto-recovering short-circuit protection and thermal overload protection for enhanced reliability.
All components and the evaluation module itself are Pb-free, aligning with environmental standards. The YFF package is suitable for surface mount applications. Design files, including Gerber files, are available for download to facilitate development.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPA2011D1YFF evaluation module can deliver 1.47 W into 8 ohms and 2.57 W into 4 ohms at 1% THD+N.
The quiescent current is typically 1.5 mA.
The output noise is typically 20 μV.
Yes, it features auto-recovering short-circuit protection.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
