The Texas Instruments TPA1517NE is a stereo audio power amplifier IC designed for high-power audio applications. It delivers up to 6W per channel into a 4-ohm load at 10% THD+N, or 5W per channel at 1% THD+N. The amplifier utilizes a Class-AB architecture and accepts analog input signals.
Key electrical characteristics include a fixed gain of 20 dB and a wide operating supply voltage range from 9.5V to 18V for both the power stage and analog circuitry. The device operates across a temperature range of -40°C to 85°C.

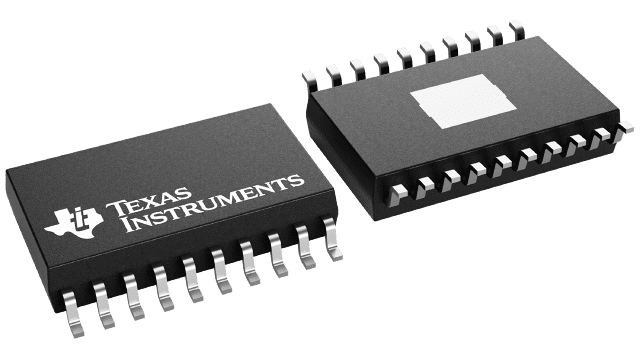

The TPA1517NE is available in a 20-pin thermally enhanced SOIC package (DWP) and a 20-pin DIP package (NE). The surface-mount HSOIC package is designed to reduce board space and facilitate automated assembly, while offering excellent thermal performance. The amplifier also includes mute and standby functions for power-sensitive applications.
The TPA1517NE can deliver 6W per channel into a 4-ohm load at 10% THD+N, or 5W per channel at 1% THD+N.
The TPA1517NE operates with a supply voltage range of 9.5V to 18V for both the power stage and analog circuitry.
The minimum supported load impedance for the TPA1517NE is 4 ohms.
The TPA1517NE has a fixed gain of 20 dB.
The TPA1517NE operates within a temperature range of -40°C to 85°C.
The TPA1517NE uses analog input.
The TPA1517NE is available in PDIP (NE) and HSOIC (DWP) packages.
