| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
717 pcs
|
717 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
308 pcs
|
308 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Working Voltage |
The Littelfuse TP5KP36A is a unidirectional TVS diode designed for transient voltage suppression in automotive applications. It features a reverse standoff voltage of 36V and a clamping voltage of 58.1V at a peak pulse current of 87.8A. With a peak pulse power rating of 5000W (5kW), this device provides robust protection against voltage transients.

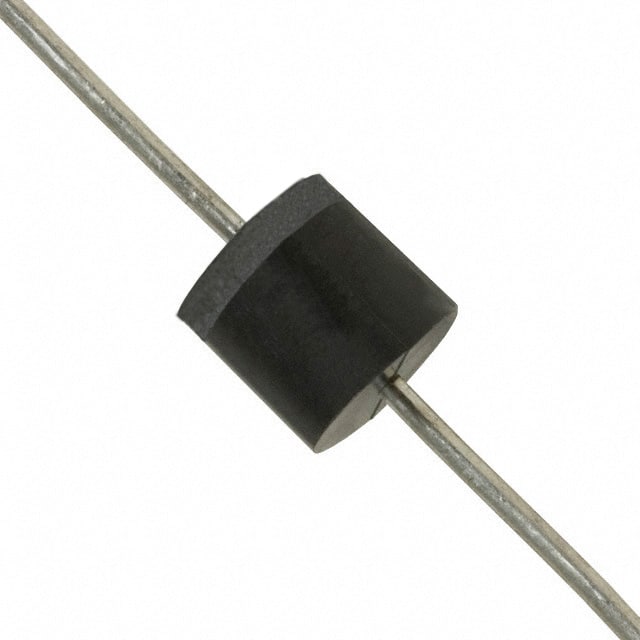

This diode is housed in a P600 axial through-hole package, suitable for automated insertion and manual assembly. It operates over a temperature range of -55°C to 150°C, making it reliable in harsh environments. The unidirectional polarity and single-channel configuration simplify circuit integration.
Designed for automotive use, the TP5KP36A meets the demands of high-reliability systems requiring consistent transient protection. Its through-hole mounting ensures secure mechanical attachment in high-vibration environments.
| Qty | Low | High |
|---|---|---|
| 800+ | $1.21 | $1.21 |
| 2,400+ | $1.19 | $1.19 |
| 4,800+ | $1.17 | $1.17 |
| 9,600+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 36V.
The clamping voltage is 58.1V.
The peak pulse current is 87.8A.
It comes in a P600 axial through-hole package.
It is unidirectional.
The operating temperature range is -55°C to 150°C.
