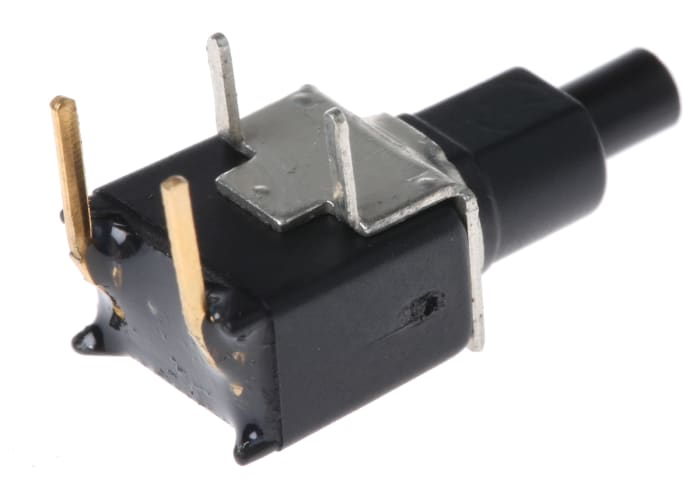

The APEM TP33W0080 is a momentary push button switch from the TP series, featuring a single pole, single throw (SPST) contact configuration. Designed for PCB mounting, it utilizes through-hole termination.
This switch operates momentarily and has a black cylinder actuator. It is suitable for low-level switching applications and features gold-plated contacts for reliable performance. The operating temperature range is from -30°C to 85°C, and it is rated for a switch contact current of 400mA.
The TP33W0080 is totally sealed, making it suitable for immersion cleaning. It is also designed for wave soldering and can withstand temperatures up to 260°C for 5 seconds. The switch is manufactured in France.
Three types of terminals are available: vertical, horizontal right angled, and vertical right angled, allowing for space-saving configurations. Push-on colored button caps are available separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM TP33W0080 features momentary switch operation.
The APEM TP33W0080 has a SPST (Single Pole Single Throw) contact configuration.
The APEM TP33W0080 switch is designed for PCB mounting.
The APEM TP33W0080 operates within a temperature range of -30°C to 85°C.
The APEM TP33W0080 has a maximum switch contact current of 400mA.
Yes, the APEM TP33W0080 is totally sealed and suitable for immersion cleaning.
Yes, the APEM TP33W0080 is suitable for wave soldering and will withstand 260°C for 5 seconds.
