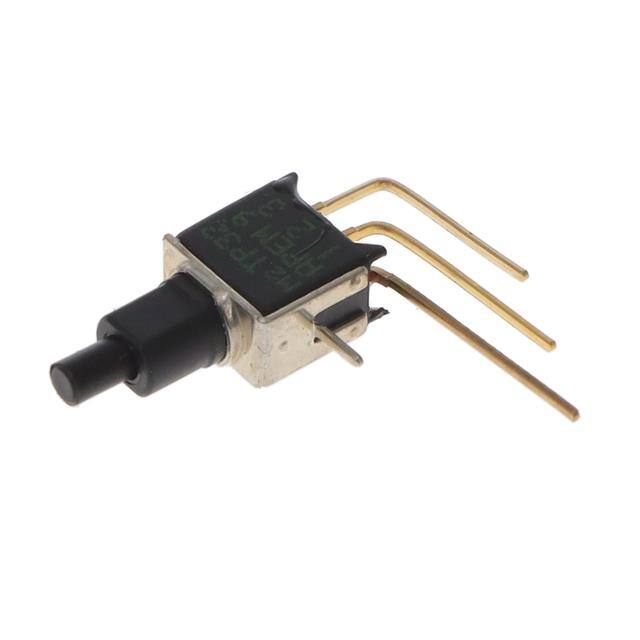

The APEM Inc. TP32WW08000 is a subminiature, washable, momentary pushbutton switch from the TP series. This switch is designed for through-hole mounting with a right-angle vertical orientation.
Key electrical specifications include an SPDT circuit, a maximum current/voltage rating of 0.4VA at 20V with gold-plated contacts, and a minimum load of 10mA at 50mV. It offers a contact resistance of 50mΩ max and an insulation resistance of 1,000MΩ min at 500VDC. The dielectric strength is rated at 1,000Vrms between terminals and frame, and 500Vrms between terminals.
Environmental specifications include an operating temperature range of -30°C to +85°C. The switch is process sealed and features front and rear sealing, making it suitable for cleaning with solvents or water and detergent. The case is made of PBT, and the actuator is polyamide with glass filling. Contacts and terminals are available in various materials, including gold-plated brass.
This switch is suitable for applications requiring a durable, sealed pushbutton with specific electrical and environmental performance characteristics. Its compact size and washable design make it versatile for various industrial and electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30 °C to +85 °C.
With gold-plated contacts, the maximum rating is 0.4 VA at 20 V AC/DC. With silver-plated contacts, it is 0.5 A at 48 V AC/DC.
The contact resistance is a maximum of 50 mΩ.
The electrical life is rated for 60,000 cycles with gold-plated contacts and 20,000 cycles with silver-plated contacts.
It uses through-hole mounting with a right-angle vertical orientation.
