| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,500 pcs
|
16500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Slew Rate | |
| Tape & Reel |

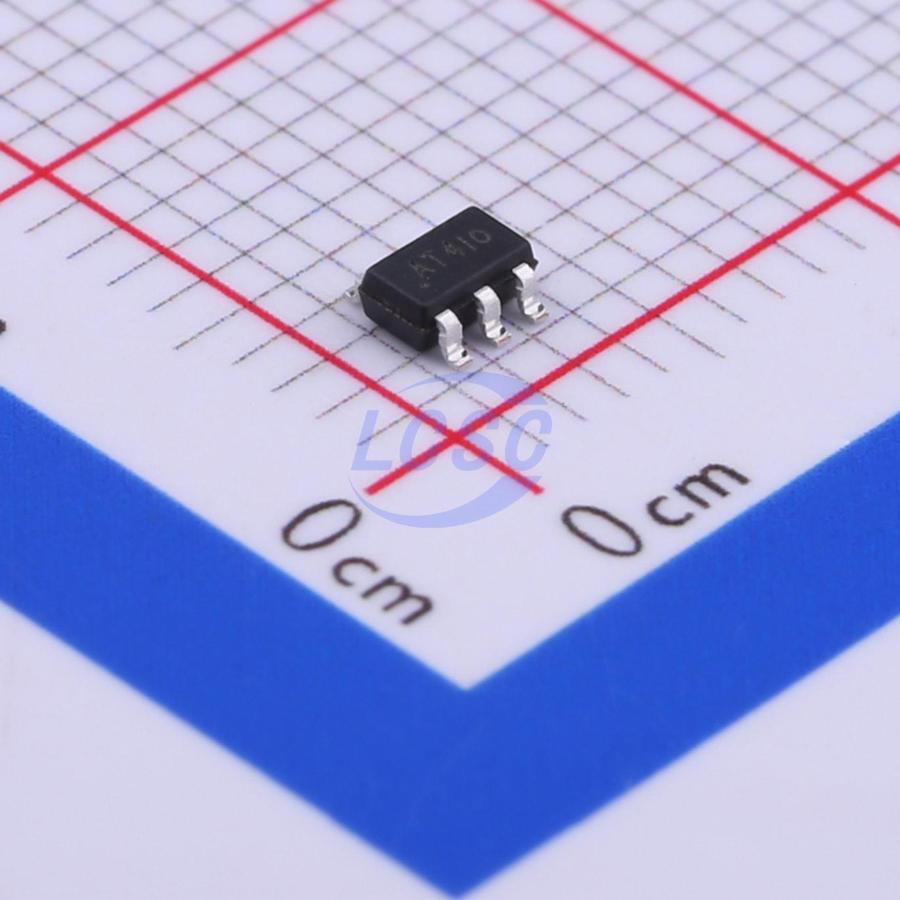

The 3PEAK TP321-TR is a versatile, low-cost, micro-power CMOS operational amplifier designed for general-purpose applications. It features a 1MHz gain bandwidth product and a low quiescent current of 45μA per amplifier, making it suitable for battery-powered devices.
Key electrical characteristics include a low offset voltage of 5.0mV maximum, a temperature drift of 2μV/°C, and an input bias current of 10pA. The amplifier boasts a high Common Mode Rejection Ratio (CMRR) and Power Supply Rejection Ratio (PSRR) of 90dB. It is unity gain stable and offers rail-to-rail input and output functionality, allowing for the full power supply voltage to be utilized for signal range.
This operational amplifier operates within a supply voltage range of 2.1V to 5.5V for the TP321-DF0R variant and 2.1V to 6.0V for other parts. It is available in a compact SOT-23-5 package, supplied on tape and reel in quantities of 3000 units. The design ensures no phase reversal for overdriven inputs, enhancing its robustness in various circuit conditions.
The gain bandwidth product of the TP321-TR is 1 MHz.
The quiescent current per amplifier for the TP321-TR is 45μA.
The maximum offset voltage of the TP321-TR is 5mV at 25°C.
The supply voltage range for the TP321-TR is 2.1V to 6.0V.
The TP321-TR is available in the SOT-23-5 package.
Yes, the TP321-TR features rail-to-rail input and output capabilities.
