Mfr Part #:

TP3057V

The Texas Instruments TP3057V is a CODEC/Filter COMBO IC designed for PCM applications. It operates at ±5V and features a serial interface.

✓ Total Stock: 13,084 pcs

$ Price Range: $2.72

TP3057V Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	13,084 pcs On Request	13084 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TP3057V Description

Short technical summary and product information.

The TP3057V from Texas Instruments is an enhanced serial interface CODEC/Filter COMBO family device. It integrates both analog-to-digital (ADC) and digital-to-analog (DAC) conversion with filtering capabilities, making it suitable for PCM applications.

This device operates with a dual voltage supply of ±5V and features a serial data interface. The encode portion includes an input gain adjust amplifier and an active RC pre-filter, followed by a switched-capacitor band-pass filter. The decode portion reconstructs the analog signal and includes a low-pass filter with sin x/x correction.

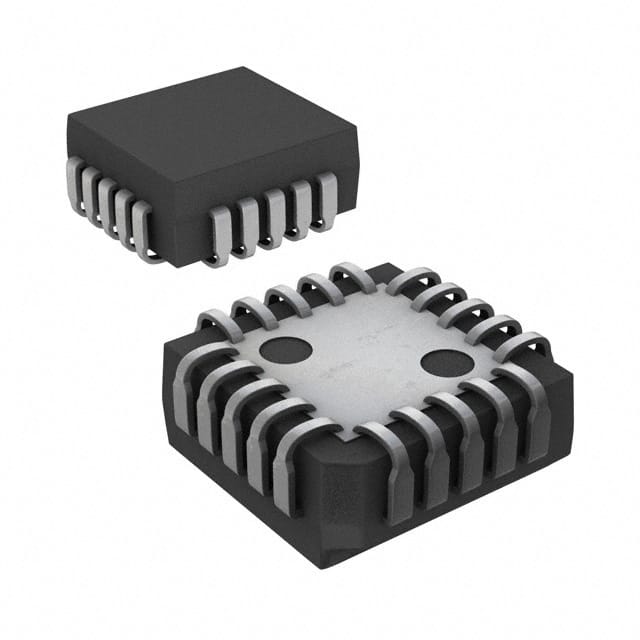

The TP3057V is available in a 20-PLCC (9x9) surface mount package, also referred to as 20-LCC (J-Lead). It operates within a temperature range of -25°C to 125°C.

TP3057V Quick Information

Product Type: CODEC/Filter COMBO

Canonical Name: TP3057V CODEC/Filter COMBO

Subcategory: CODEC/Filter

TP3057V Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TP3057V Estimated Pricing

Qty	Low	High
1+	$2.72	$2.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

TP3057V Features

Integrated CODEC and filtering system.
Supports serial PCM data interface.
Operates at ±5V supply voltage.
Surface mount 20-PLCC package.
Wide operating temperature range.

TP3057V Applications

Suitable for digital voice communication systems.
Used in telephony and VoIP applications.
Ideal for audio signal filtering and encoding.
Applicable in data acquisition and processing devices.

TP3057V FAQs

6 frequently asked questions generated from this part’s specifications.

What type of CODEC/Filter is the TP3057V?

The TP3057V is a PCM, Filter type CODEC/Filter.

What is the operating voltage for the TP3057V?

The TP3057V operates at ±5V.

What is the operating temperature range for the TP3057V?

The TP3057V operates from -25°C to 125°C.

What is the package type for the TP3057V?

The TP3057V is available in a 20-PLCC (9x9) package, also known as 20-LCC (J-Lead).

What is the RoHS status of the TP3057V?

The TP3057V is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the TP3057V?

The Moisture Sensitivity Level (MSL) for the TP3057V is 1 Unlimited.

TP3057V Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

TP3057V/NOPB

Texas Instruments

The Texas Instruments TP3057V/NOPB is an A-law CODEC/Filter COMBO integrated circuit featuring a serial interface. It operates with ±5V supplies and is available in a surface mount 20-PLCC package.
