| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,121 pcs
|
3121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Type | |
| Package / Case | |
| Slew Rate |

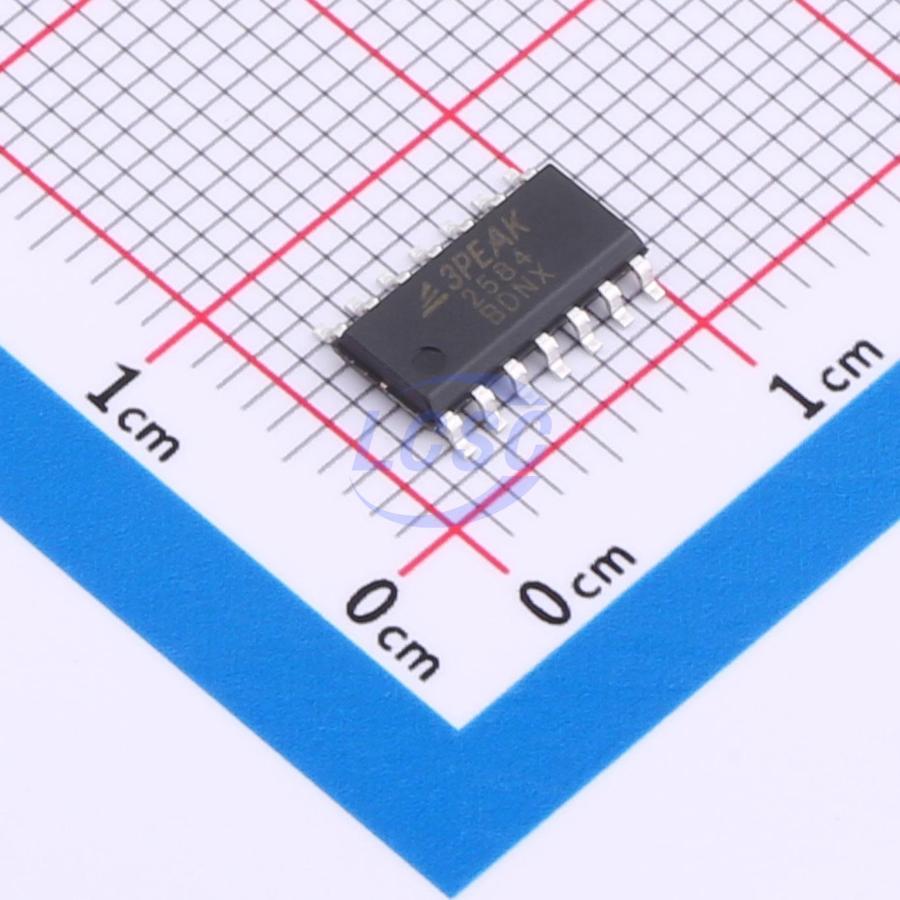

The TP2584-SR from 3PEAK is a high voltage operational amplifier designed for demanding applications. It offers a stable high frequency response with a 10MHz bandwidth and a fast 8V/μs slew rate, along with a 100ns overload recovery time.
This op-amp supports a wide supply voltage range from 3V to 36V, or ±1.5V to ±18V. It features low offset voltage, with a maximum of ±3mV at 25°C, and maintains performance across a broad operating temperature range of -40°C to 125°C. The TP2584-SR also boasts very low THD+N of 0.0007% at 20kHz and excellent EMIRR of 58dB at 900MHz.
Designed with 3PEAK’s proprietary technology, the TP258X family draws only 3mA of quiescent current per amplifier, making it a low-power solution. Its rail-to-rail output and differential input voltage range to supply rail enhance its versatility.
The TP2584-SR is available in a 14-pin SOIC/TSSOP package suitable for surface mounting. Its robust design and performance characteristics make it ideal for applications such as audio amplification, sensor interfaces, and motor control.
The TP2584-SR operates from 3V to 36V single supply or ±1.5V to ±18V dual supply.
The bandwidth is 10MHz.
The operating temperature range is -40°C to 125°C.
The TP2584-SR is available in a 14-pin SOIC/TSSOP surface mount package.
The slew rate is 8V/µs.
The quiescent current is 3mA per amplifier.
The maximum offset voltage is ±3mV at 25°C.
