| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,477 pcs
|
1477 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Slew Rate | |
| Supply Voltage |

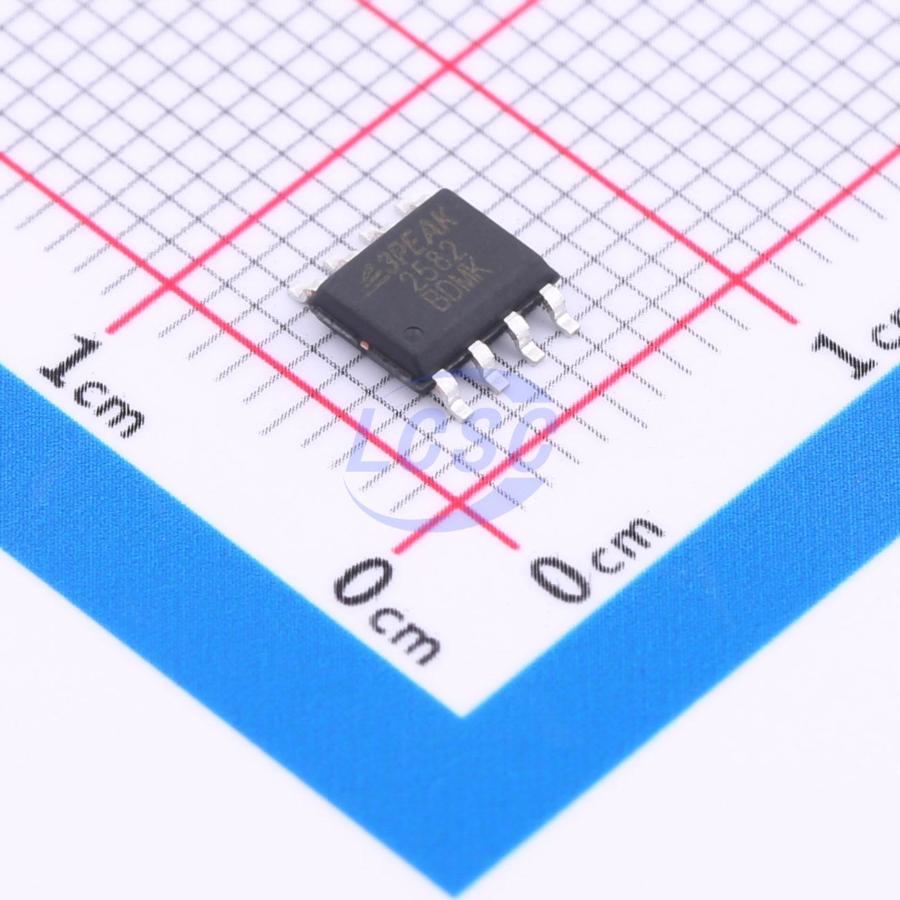

The TP2582-SR from 3PEAK is a high-voltage operational amplifier designed for demanding applications. It features a wide supply voltage range of 3V to 36V, or ±1.5V to ±18V, and provides a fast 10MHz bandwidth with an 8V/μs slew rate. The amplifier also boasts a low offset voltage, with a maximum of ±3mV at 25°C, and a very low THD+N of 0.0007% at 20kHz.
With rail-to-rail output and differential input voltage range to the supply rail, the TP2582-SR offers flexibility in design. Its operation temperature range is from -40°C to 125°C. The device draws only 3mA of quiescent current per amplifier, making it suitable for power-sensitive designs.
This operational amplifier is available in an 8-Pin SOIC package, suitable for surface mount applications. Its robust performance characteristics make it an ideal choice for audio amplification, sensor interfaces, and motor control applications.
3V to 36V or ±1.5V to ±18V.
SOIC (Small Outline Integrated Circuit) package.
-40°C to 125°C.
10 MHz typical.
8 V/µs typical.
0.0007% at gain=1, 20kHz.
3 mA.
