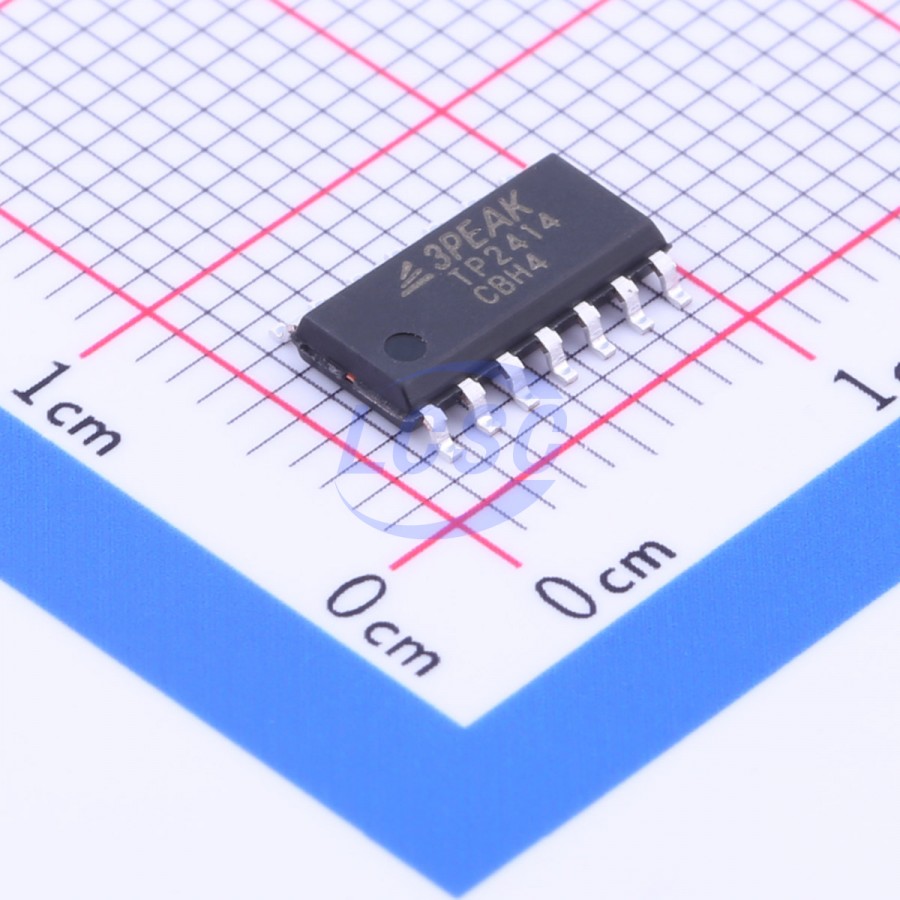

The 3PEAK TP2414-SR is a quad, low-cost, low-noise CMOS operational amplifier with rail-to-rail output and input capabilities. It provides a 10 MHz gain-bandwidth product and a 7 V/μs slew rate, making it suitable for a wide range of applications.
Key electrical characteristics include a low offset voltage of 1 mV maximum, low input bias current of 0.3 pA typical, and low noise density of 8.2 nV/√Hz at 1 kHz. The amplifier operates from a wide supply range of 2.2 V to 5.5 V and consumes a low supply current of 1.4 mA per channel.
Designed for versatility, the TP2414-SR is well-suited for sensor signal conditioning, consumer audio, multi-pole active filters, control-loop amplifiers, communications, and security systems. Its high output current capability of 70 mA with a 1.0V drop further enhances its utility in power-sensitive applications.
This specific part, the TP2414-SR, is supplied in a 14-pin SOP package and is delivered on tape and reel, with a standard package quantity of 2,500 units. It operates across a wide temperature range of -40°C to 125°C.
10 MHz.
2.2 V to 5.5 V.
-40°C to 125°C.
SOP package.
1.4 mA.
1 mV.
7 V/µs.
