The 3PEAK TP2311-TR is a high-precision operational amplifier designed for applications requiring excellent DC accuracy and AC performance. It features a gain-bandwidth product of 10 MHz, low noise density of 8.2 nV/√Hz at 1kHz, and a slew rate of 7 V/μs. The offset voltage is a maximum of 50 μV, and it boasts a low input bias current of 0.3 pA typical.
This op-amp operates over a wide supply range of 2.2 V to 5.5 V and consumes a low supply current of 1.4 mA/channel. It offers rail-to-rail input/output capability and a high output current of 70 mA. The operating temperature range is -40° C to 125° C, making it suitable for demanding environments. It also has robust ESD protection with 6kV HBM and 2kV CDM ratings.

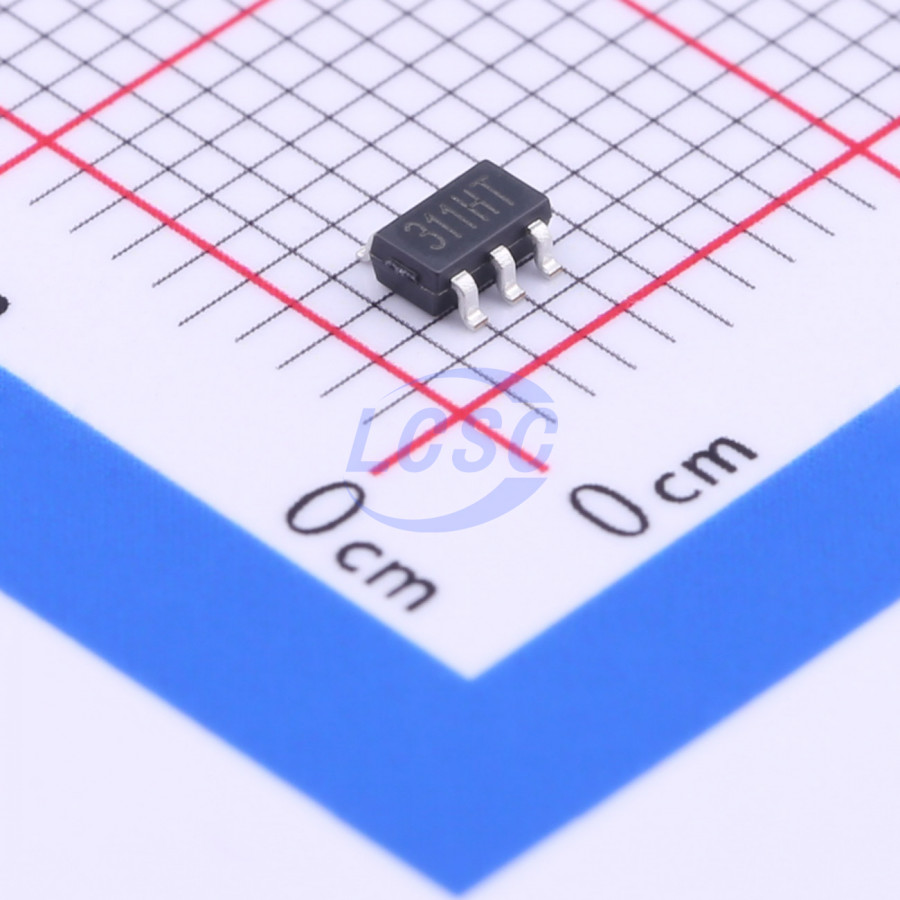

The TP2311-TR is available in a compact 5-pin SOT23 package, ideal for space-constrained designs. Its combination of precision, low noise, and high bandwidth makes it a versatile choice for sensor signal conditioning, consumer audio, multi-pole active filters, and control-loop amplifiers.
The gain-bandwidth product of the TP2311-TR is 10 MHz.
The typical noise density for the TP2311-TR at 1kHz is 8.2 nV/√Hz.
The slew rate of the TP2311-TR is 7 V/μs.
The maximum offset voltage for the TP2311-TR is 50 μV.
The TP2311-TR operates over a supply range of 2.2 V to 5.5 V.
The TP2311-TR has an operating temperature range of -40° C to 125° C.
The TP2311-TR is supplied in a SOT23-5 package.
