| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,630 pcs
|
1630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Package / Case | |
| Slew Rate | |
| Supply Voltage |

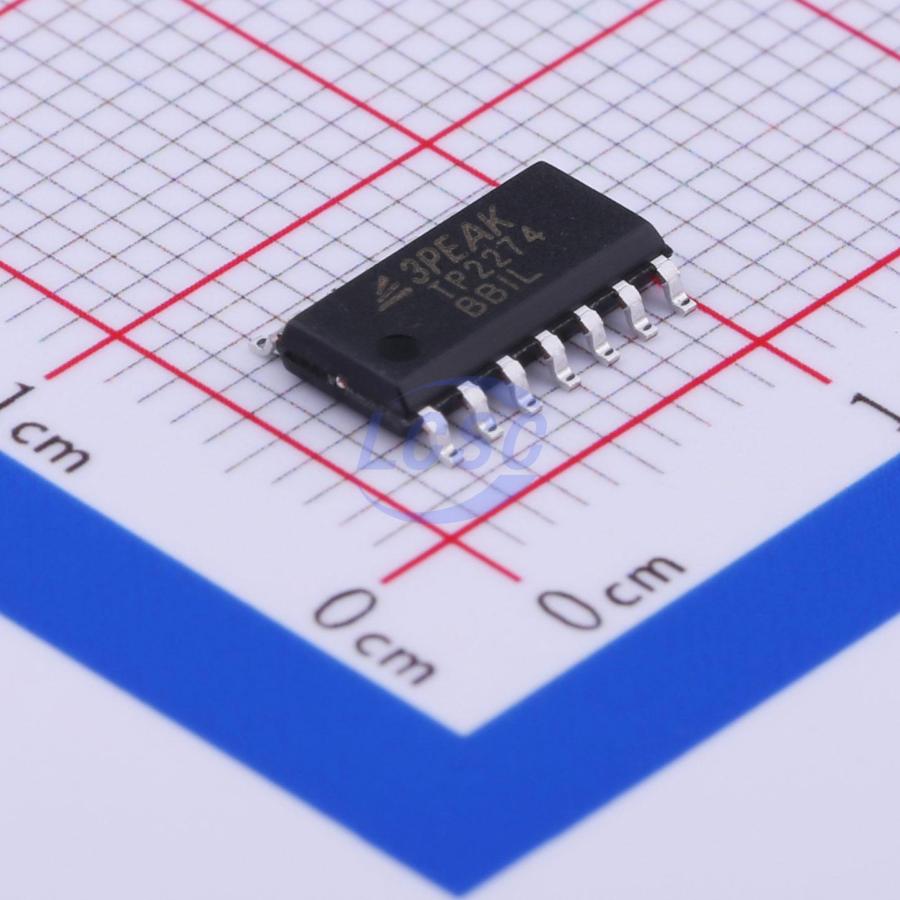

The 3PEAK TP2274-SR is a versatile instrumentation amplifier designed for general-purpose applications. It offers a gain bandwidth product of 7MHz and a slew rate of 20V/us, enabling efficient signal amplification.
This device supports a wide supply voltage range from 2.7V to 36V, providing flexibility for various power configurations. It is housed in a compact SOIC-14 package, suitable for surface mount assembly.
The TP2274-SR features four circuits per device, making it efficient for multi-channel applications. Its operating temperature range is from -40°C to 125°C, ensuring reliable performance in diverse environmental conditions.
The supply voltage range is 2.7V to 36V.
The TP2274-SR is available in an SOIC-14 surface-mount package (150 mil body width).
The operating temperature range is -40°C to 125°C.
The TP2274-SR contains four (4) operational amplifiers.
The quiescent current per channel is 900µA typical.
The gain bandwidth product is 7MHz.
The slew rate is 20V/µs.
