| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Hardware | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

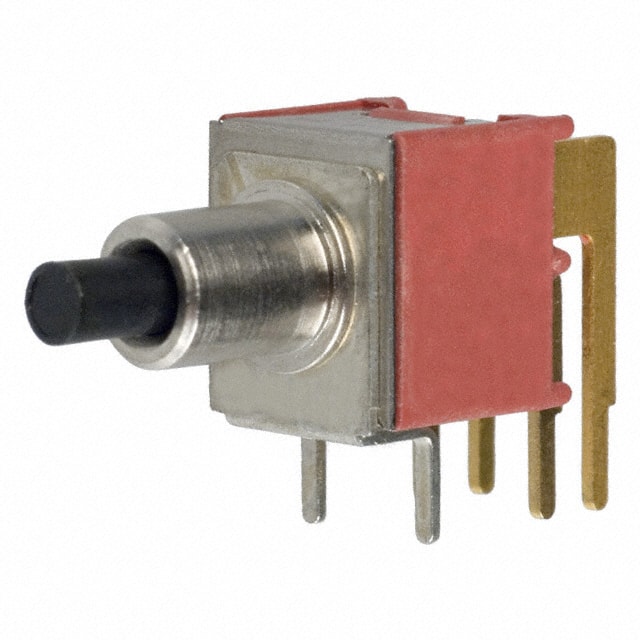

The C&K TP21MS9ABE is a tiny pushbutton switch from the TP Series, designed for applications requiring reliable switching in a compact form factor. This model features a Double Pole Single Throw Normally Open (DPST-NO) circuit configuration.
It is rated for 0.4VA at 20V AC/DC and has a contact resistance below 20 mΩ. The switch operates within a temperature range of -30°C to 85°C. The mounting type is Through Hole with Right Angle terminations, and it uses PC Pin style connections.
The TP series switches are known for their subminiature size and sealed construction, making them suitable for various applications including telecommunications, networking, and instrumentation. The epoxy terminal seal provides protection during soldering and cleaning processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4VA max. @ 20 V AC or DC max.
The electrical life is 30,000 cycles at full load.
The operating temperature range is -30°C to 85°C.
It features Through Hole, Right Angle mounting.
The circuit configuration is DPST-NO (Double Pole Single Throw Normally Open).
The voltage rating is 20 V.
