| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
341 pcs
|
341 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Hardware | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

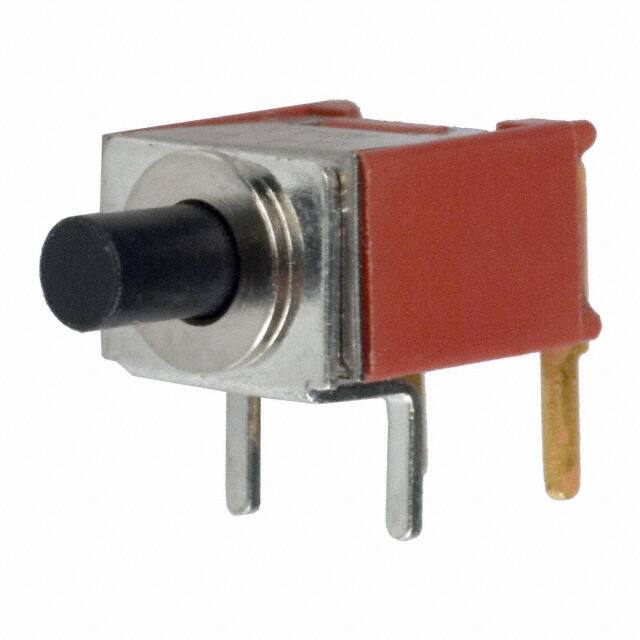

The C&K Components TP11MS9ABE is a tiny pushbutton switch from the TP Series, designed for telecommunications, networking, and instrumentation applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit with a contact rating of 0.4VA at 20V AC/DC.
This switch is sealed against solder and cleaning processes and is available in through-hole, right-angle mounting configurations with PC pin termination. The operating temperature range is -30°C to 85°C. The case is constructed from flame-retardant glass-filled nylon or DAP, and the plunger is thermoplastic polyester.
Key specifications include an electrical life of 60,000 cycles at full load for TP11 models, a contact resistance below 20 mΩ typical, and insulation resistance of 10 GΩ minimum. The dielectric strength is 1000 Vrms minimum.
This model is RoHS3 compliant and has an MSL of 1. Its subminiature size and ability to switch at 1 AMP (for Q contact material) make it suitable for various electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating for B contact material is 0.4 VA max. @ 20 V AC or DC max. For Q contact material, it is 1 amp @ 120 V AC or 28 V DC.
For TP11 and TP21 models, the electrical life is 60,000 make-and-break cycles at full load. For TP12 models, it is 30,000 cycles.
The operating temperature range is -30°C to 85°C.
Yes, this switch is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
