| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Hardware | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

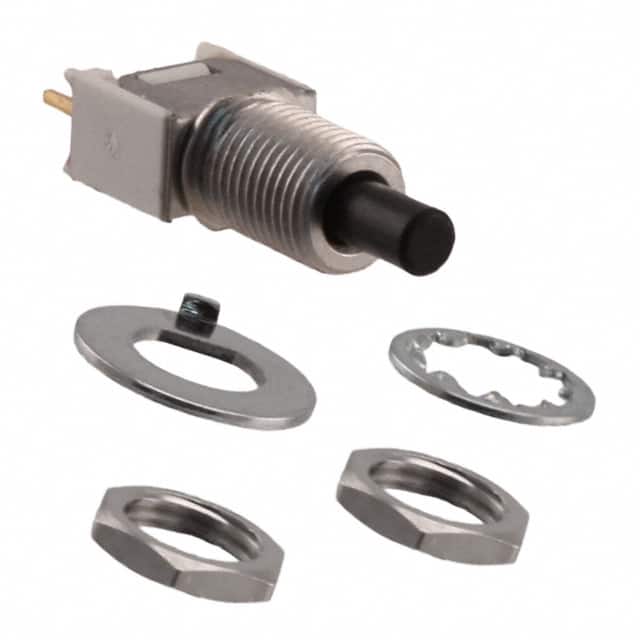

The C&K Components TP11LTCBE is a tiny pushbutton switch designed for telecommunications, networking, and instrumentation applications. It features a sealed construction, compatible with bottom wash cleaning processes.
This switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration. The contact rating is 0.4VA maximum at 20V AC or DC. Electrical life is rated for 60,000 make-and-break cycles at full load. Contact resistance is typically below 20 mΩ initial.
Operating within a temperature range of -30°C to 85°C, the TP11LTCBE utilizes a round, plunger actuator. It is designed for panel mounting with rear access and features PC pin termination style. The panel cutout dimension is circular with a 6.35mm diameter. The switch housing is stainless steel, with a brass nickel-plated bushing and switch support.
This model is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH Unaffected. It is suitable for applications requiring a compact and durable pushbutton switch.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4VA maximum at 20V AC or DC for B contact material, and 1 amp at 120V AC or 28V DC for Q contact material.
The electrical life for TP11 and TP21 models is 60,000 make-and-break cycles at full load. TP12 models have a life of 30,000 cycles.
The operating temperature range is -30°C to 85°C.
This switch is designed for panel mounting with rear access.
It uses a PC Pin termination style.
