| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,718 pcs
|
1718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Operating Voltage | |
| Output Current | |
| Quiescent Current | |
| Slew Rate |

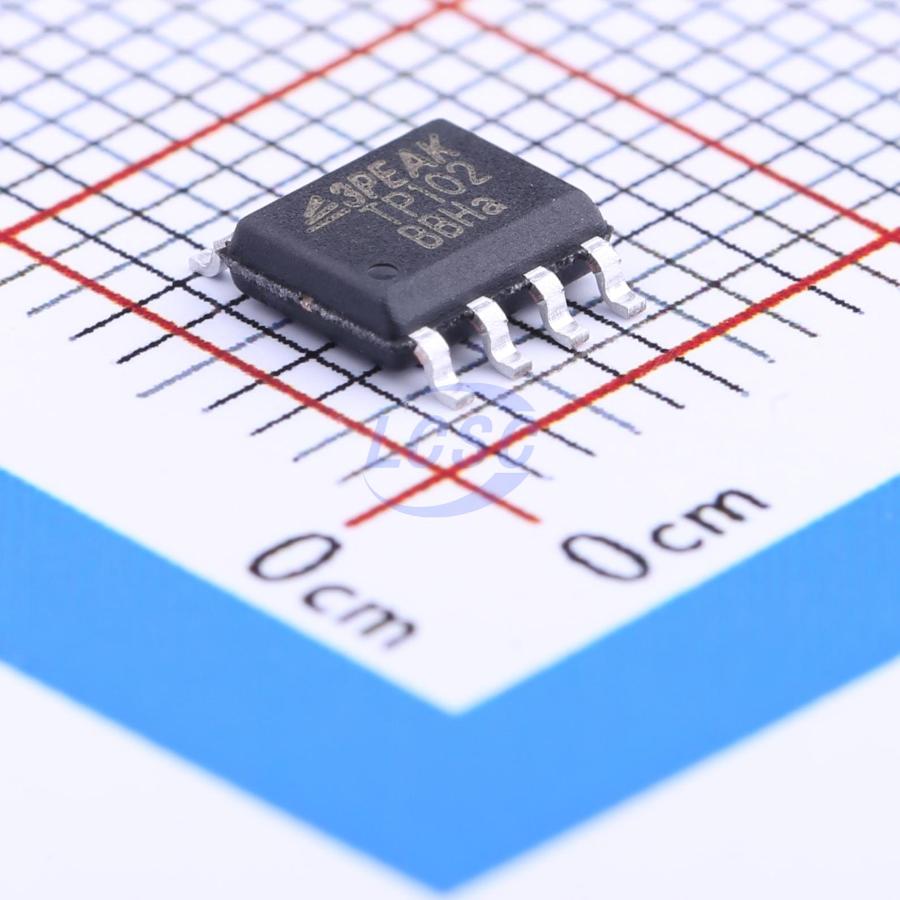

The 3PEAK TP10-2-SR is a versatile operational amplifier designed for a wide range of applications. It features a 6MHz gain bandwidth product and a fast 4.5V/µs slew rate, making it suitable for signal processing tasks.
This amplifier boasts Rail-to-Rail input and output functionality, maximizing dynamic range. It operates from a single supply voltage ranging from 2.7V to 5.5V. Key electrical characteristics include a low input offset voltage of 3mV, a low input bias current of 1pA, and a low input offset current of 1pA.
With a typical output current of 100mA and a high Common Mode Rejection Ratio (CMRR) of 100dB, the TP10-2-SR provides robust performance. The device operates within an extended temperature range of -40℃ to +125℃. It is supplied in a compact SOP-8 package, suitable for surface-mount technology (SMT) assembly.
This operational amplifier is designed for applications requiring high performance and efficiency. Its specifications make it a good choice for various analog circuit designs.
The TP10-2-SR operates from a single supply voltage of 2.7V to 5.5V.
The gain bandwidth product is 6MHz typical.
The slew rate is 4.5V/µs typical.
The TP10-2-SR is a dual operational amplifier with 2 channels.
The operating temperature range is -40°C to +125°C.
The TP10-2-SR is available in a SOP-8 package.
The input offset voltage is 3mV typical.
