| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Compliance | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Number of Ports | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

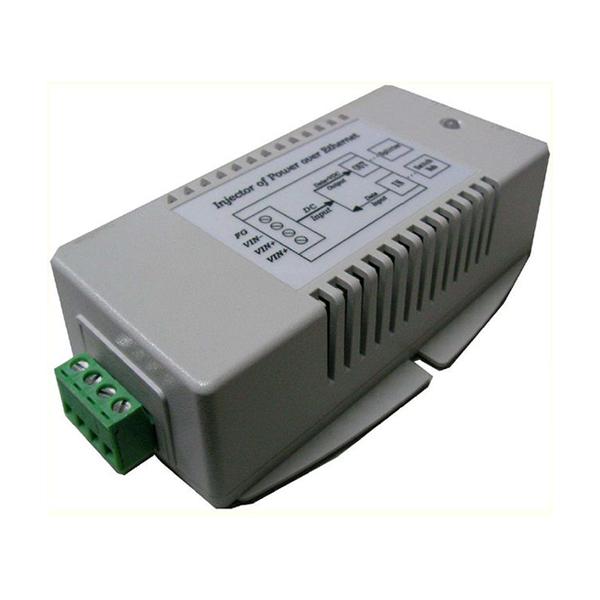

The Tycon Systems Inc. TP-DCDC-4856GD-VHP is an enclosed DC DC converter designed for ITE (Commercial) applications. It features a chassis mount type and provides a single output with 70W of power.
Key electrical specifications include an input voltage of 36V, an output current of 1.25A, and an output power of 70W. The converter boasts an efficiency of 80% and includes protection features such as OCP, OTP, OVP, and SCP. It is compliant with IEEE802.3at and adheres to the 60950-1 standard, with approvals from FCC and TUV.
Mechanically, the unit measures 124.5mm in length, 76.2mm in width, and 38.1mm in height. The operating temperature range is from -30°C to 60°C. This converter is suitable for various commercial applications requiring reliable DC to DC power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TP-DCDC-4856GD-VHP has an output power of 70W.
The input voltage for the TP-DCDC-4856GD-VHP is 36V.
The output current of the TP-DCDC-4856GD-VHP is 1.25A.
The operating temperature range is -30°C to 60°C.
The TP-DCDC-4856GD-VHP uses chassis mount.
The dimensions are 124.5mm x 76.2mm x 38.1mm.
It is compliant with IEEE802.3at and the 60950-1 standard, with FCC and TUV approvals.
