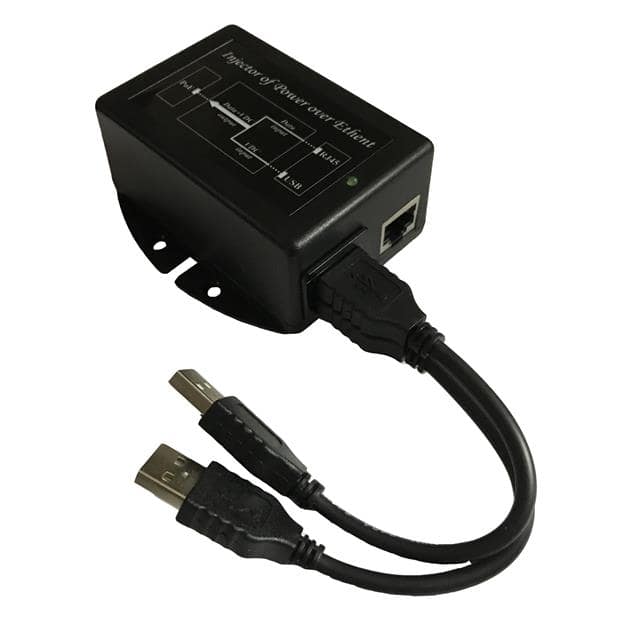

The Tycon Systems Inc. TP-DCDC-2USB-24 is an enclosed DC DC converter designed for ITE (Commercial) applications. It operates with an input voltage of 5V and provides a stable output voltage of 24V at 12W per port, with an output current of 500mA.
Key electrical specifications include a data rate of 10/100 Mbps, an efficiency of 72%, and protection features such as OCP (Over Current Protection), OVP (Over Voltage Protection), and SCP (Short Circuit Protection). The unit has a single output port and a single output.
Mechanically, the converter is designed for chassis mounting and features RJ45 connectors for data and power input, and USB connectors for power output. Its dimensions are 86.4mm in length, 76.2mm in width, and 35.6mm in height. The operating temperature range is from -30°C to 50°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TP-DCDC-2USB-24 provides a 24V output voltage with 12W of power per port.
It features RJ45 connectors for data and power input, and USB connectors for power output.
The operating temperature range is -30°C to 50°C.
The converter includes Over Current Protection (OCP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
