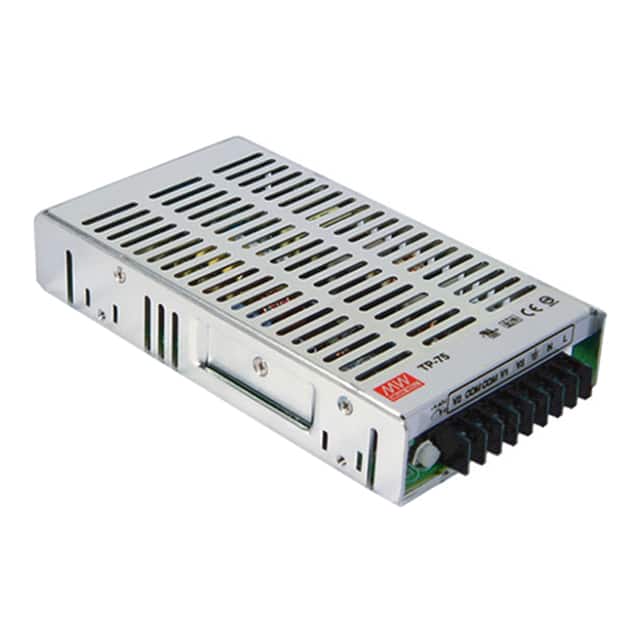

The Mean Well USA TP-75A is an enclosed AC DC converter designed for ITE (Commercial) applications. It provides a total power of 74W with a -5V output voltage and 7A current.
Key electrical specifications include an efficiency of 70% and features such as adjustable output, power factor correction (PFC), and universal input. The unit is designed for chassis mounting.
Operating within a temperature range of -10°C to 60°C (with derating), the TP-75A has three output channels. It holds approvals from CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards.
Enclosed, chassis mount.
-10°C to 60°C with derating.
Three outputs: 5V, 12V, and -5V.
74W.
70%.
Adjustable output, PFC, universal input.
CB, CE, cURus, TUV.
