| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,500 pcs
|
11500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Finish | |
| Material | |
| SVHC Present | |
| Tape & Reel | |
| Tape Width |
The TP-108-02-5-T test point from Lumex Opto/Components Inc. is engineered for long life and durability, utilizing spring tempered phosphor bronze flat wire. This construction provides a larger surface area for mounting, which is crucial for handling mechanical stresses common in testing processes.
The standard TP-108-02-5-T features a .0001 minimum matte tin finish over a .0001 nickel underplate. It is also available with a .0001 minimum silver finish over a .00005 minimum copper underplate. This test point is compatible with the reflow soldering process.

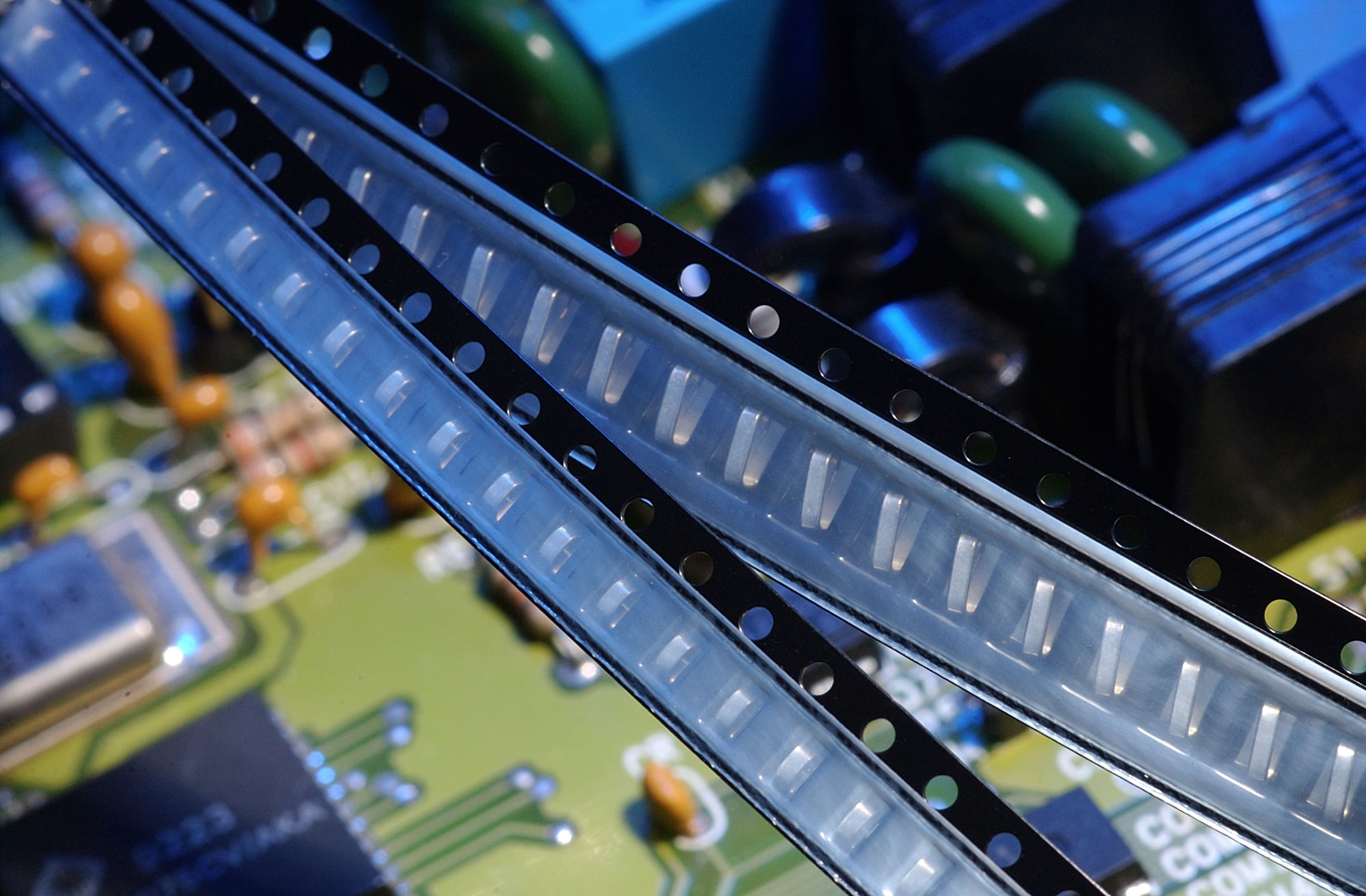

Units are supplied in tape and reel format on 7-inch reels, designed for automatic placement systems. The tape measures 8mm wide with a 4mm pitch, and the black conductive carrier tape conforms to the ANSI/EIA-481 standard. Both Matte Tin and Silver Plated options are offered.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TP-108-02-5-T is manufactured from spring tempered phosphor bronze flat wire.
The TP-108-02-5-T is offered in Matte Tin finish over nickel underplate, or Silver Plated finish over copper underplate.
Units are supplied in tape and reel format on 7-inch reels, with 8mm wide tape and 4mm pitch.
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
