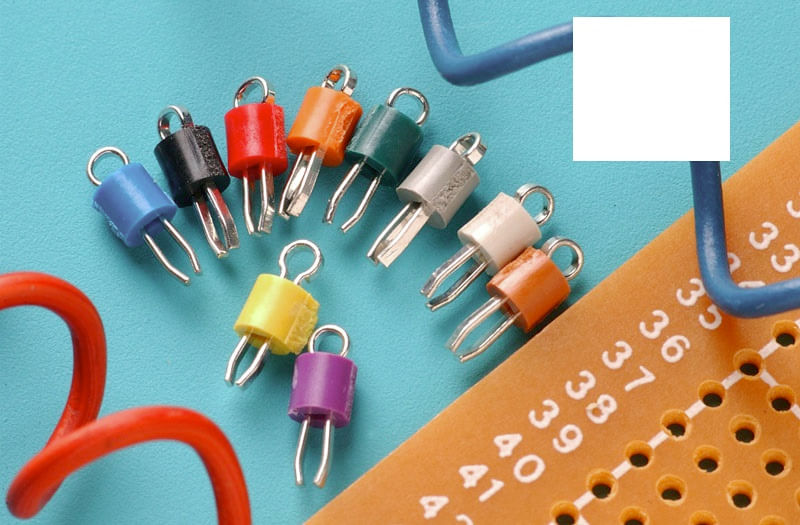

TP-104-01-09 The COMP CORP TP-104-01-09 is a loop-configured test point designed for efficient and economical use. It features a plastic standoff for improved visibility and polarization.
Mfr Part #:

TP-104-01-09

Available from 1 distributors
Mfr Name: COMP CORP
COMP CORP
The COMP CORP TP-104-01-09 is a loop-configured test point designed for efficient and economical use. It features a plastic standoff for improved visibility and polarization.
✓ Total Stock: 4,290 pcs

TP-104-01-09 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
4,290 pcs
On Request
4290 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TP-104-01-09 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Hole Diameter
Mounting Type
Number of Positions
Package / Case
View Similar Products (0)

TP-104-01-09 Description

Short technical summary and product information.

The COMP CORP TP-104-01-09 is a loop-configured test point from the TP-104 Series. This design incorporates a plastic standoff to enhance visibility and allow for easy polarization and identification. It offers a solid, non-slip grip for test clips and probes, a low profile, and single-hole wavesolderable mounting.



The TP-104-01-09 is furnished in 30-position breakaway strips with 0.125" centers, facilitating storage, handling, and tandem installations. It is designed to be securely inserted into 0.062" diameter holes for soldering operations. Standard colors include red and black, with special colors available upon request. The product can be ordered pre-cut to any number of positions up to 30.



This test point is suitable for various electronic testing applications where a reliable and easily identifiable connection point is required. Its design aims to eliminate the skin punctures associated with using wrap posts as substitute test points.

TP-104-01-09 Quick Information

Product Type: Test Point
Canonical Name: COMP CORP TP-104-01-09 Test Point
Subcategory: Test Points

TP-104-01-09 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TP-104-01-09 Features

  • Loop configured test point design.
  • Plastic standoff boosts visibility.
  • Solid non-slip grip for clips.
  • Single hole wavesolderable mounting.
  • Furnished in 30-position breakaway strips.

TP-104-01-09 Applications

  • Ideal for electronic test setups.
  • Facilitates easy polarization.
  • Secure grip for probes and clips.
  • Suitable for tandem installations.

TP-104-01-09 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mounting type of the TP-104-01-09?

Through Hole.

What is the hole diameter of the TP-104-01-09?

0.062 in.

What is the center spacing of the TP-104-01-09?

0.125 in.

How many positions does the TP-104-01-09 have?

30 positions.

What colors are available for the TP-104-01-09?

Red and Black.

What is the test point type of the TP-104-01-09?

Loop.
